Epiphone Rumblekat Allen Woody Bass Vintage Wiring Harness
£60.50
We build your Epiphone Rumblekat Allen Woody Bass Vintage Wiring Harness to order using professional fully tested electrical components.
Includes wiring diagram & installation guide.
Photos coming soon
Description

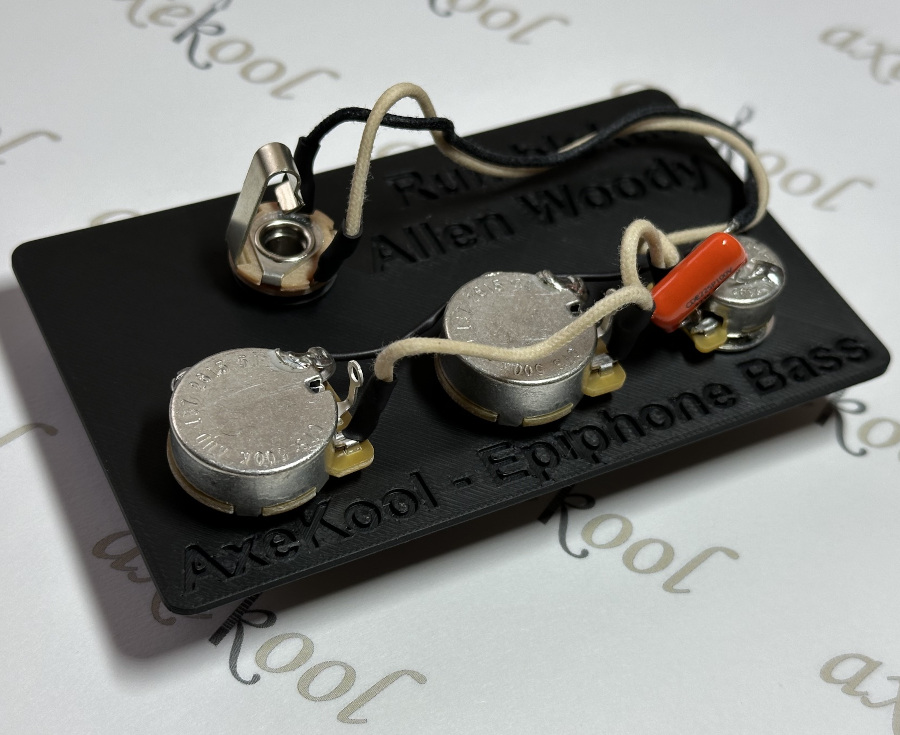

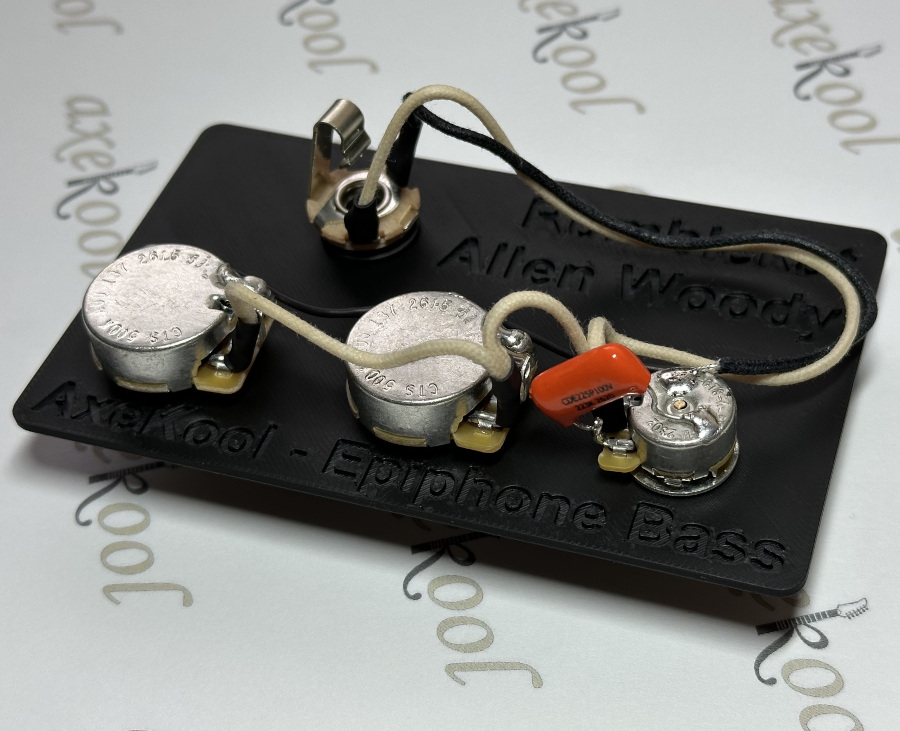

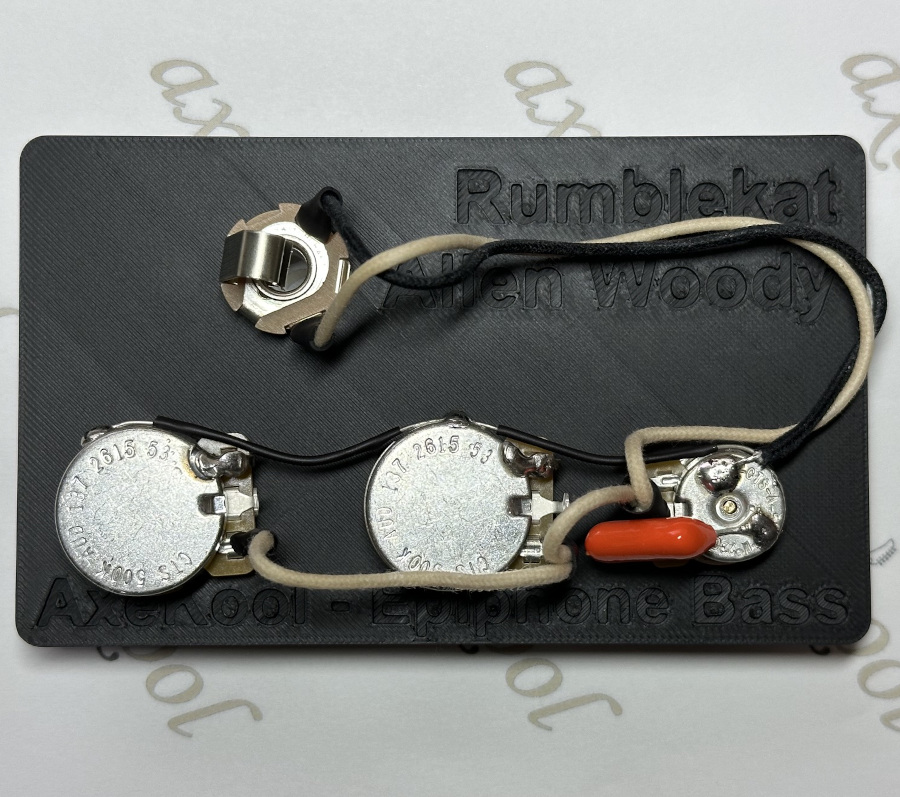

Epiphone Rumblekat Allen Woody Bass Vintage Wiring Harness
This pre-wired Epiphone Rumblekat Allen Woody Bass Vintage Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Epiphone Bass harnesses together. Everything is fully tested before being posted to you.
This is a Professional Epiphone Rumblekat Bass wiring harness using the very best in components to enhance the quality of tone and sound output from your guitar.
Read about our Vintage Wiring Harnesses Here. We use our Epiphone Bass vintage wiring harnesses in our workshop for our clients guitar upgrades and also for our Axeify guitar upgrading services, read more Here.
Components
Premium 500k CTS Potentiometers x 3, split shaft.
Switchcraft Jack Socket.
Capacitor / Sprague Orange Drop, Size 0.022uF.
Gavitt USA made cloth covered 22AWG wire.
Tinned-copper “buss” ground wire.
Jack Socket and Pots supplied with Nut, Flat Washer & Locking Star Washer.
You are welcome to Contact Us with your custom requirements.
Controls
Neck Volume Control.
Bridge Volume Control.
Master Tone.
Will this fit my guitar?
Our pre-wired Epiphone Rumblekat Allen Woody Bass Vintage Wiring Harness is wired to fit genuine Epiphone Basses. If installing into an imported model or a DIY guitar kit you will need to ensure the Potentiometer holes on the control plate will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.
Centre to centre measurements between components
Centre of Volume pot 1 to centre of volume pot 2 – 45mm.
Centre of Volume pot 2 to centre of tone pot – 45mm.
Centre of tone pot to centre of jack socket – 45mm.
These measurements were taken from a Epiphone Rumblekat Allen Woody Bass Vintage Wiring Harness control plate. If your measurements are different from the above, please let us know and we will build your harness to your specifications.
Installation, Documents & Support
Please see our Support Page for wiring diagrams and fitting instructions.

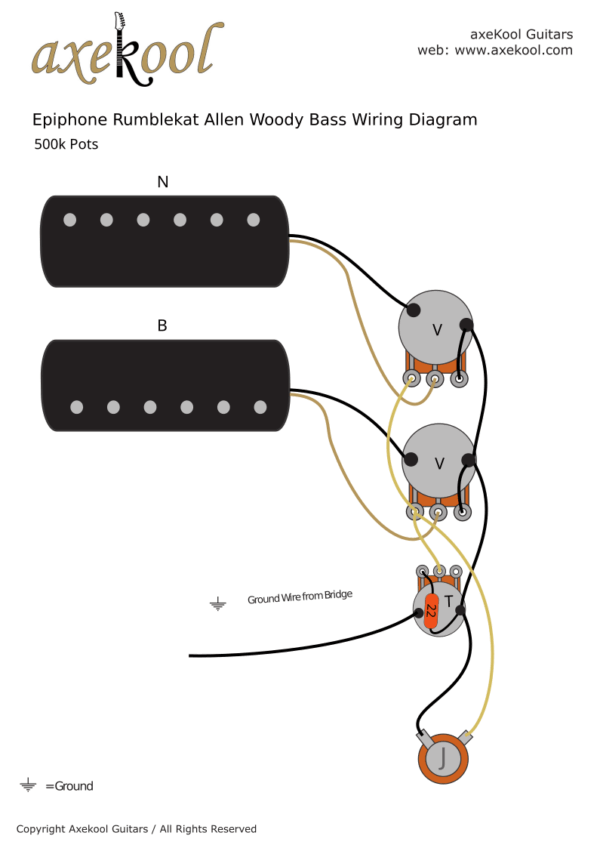

The Epiphone Rumblekat Allen Woody Bass Vintage Wiring Harness is one of the more simple harnesses to fit with just 4 wires to solder, 2 x ground and 2 hot wires from the pickups and the ground wire from the bridge. All ground wires go to the back of the Volume Potentiometer and the pickup x 2 hot wires goes to the input terminals on the Volume Potentiometers. We have made it as simple as possible to install your Epiphone Rumblekat Allen Woody Bass Vintage Wiring Harness. We offer full after support should you need it.
Order Times
We make everything to order and the turnaround time for a Epiphone Rumblekat Allen Woody Bass Vintage Wiring Harness is 48 hours.
