Fender American Performer Precision Bass Vintage Wiring Harness with Blend Pot

Description

Fender American Performer Precision Bass Vintage Wiring Harness with Blend Pot

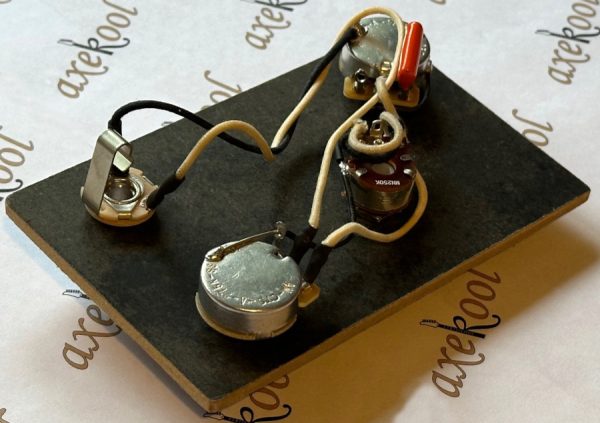

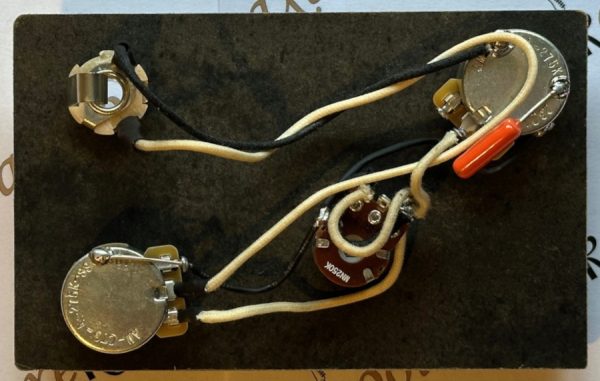

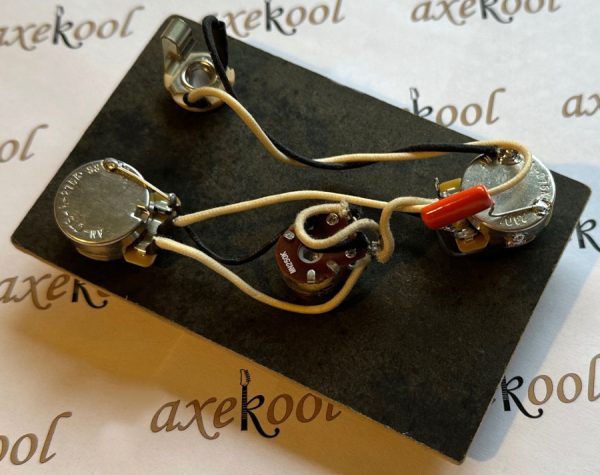

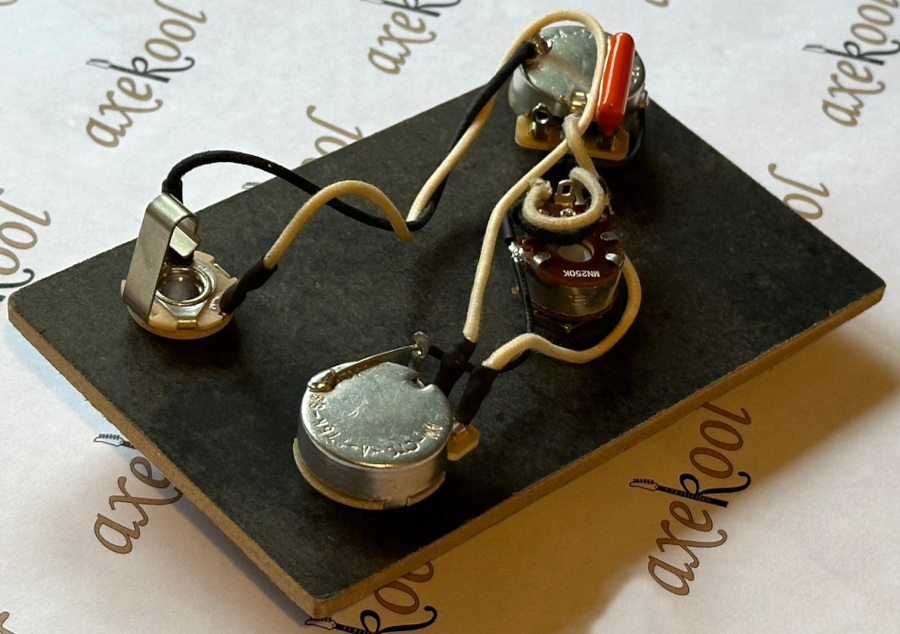

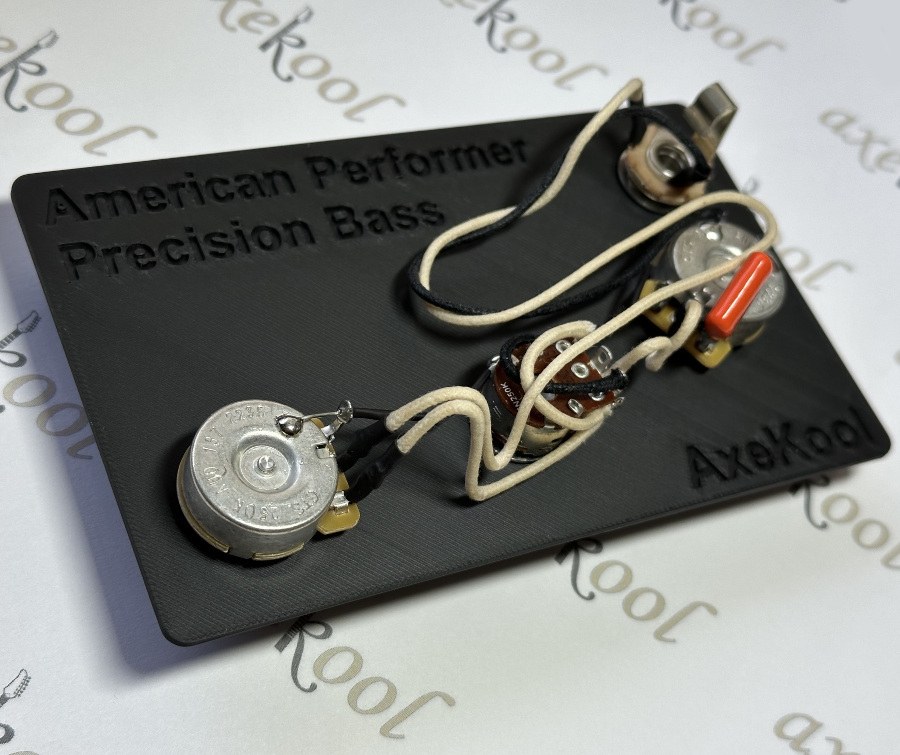

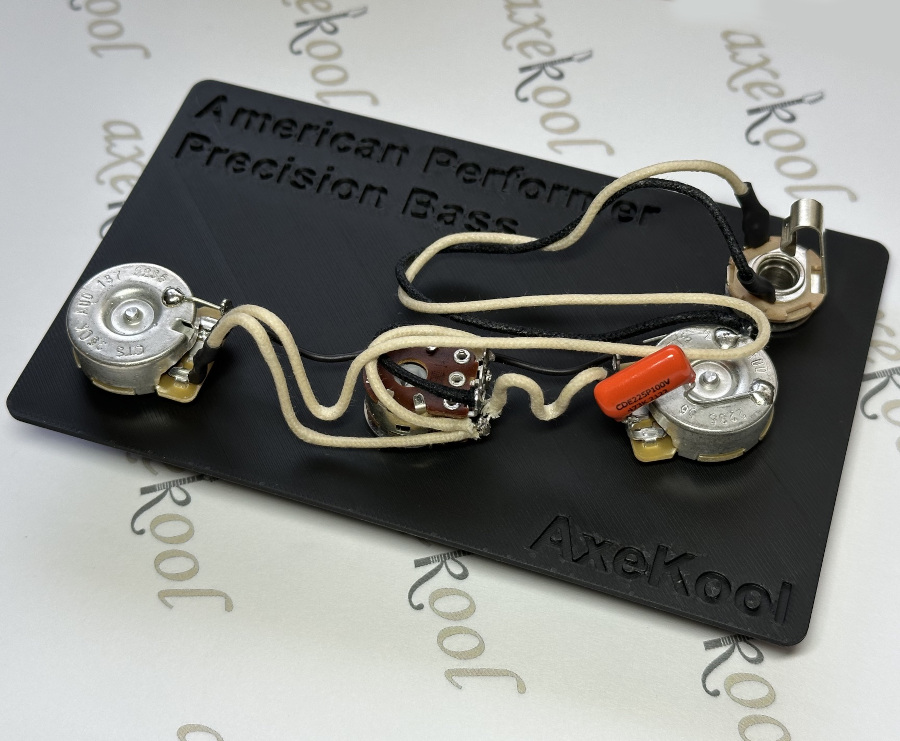

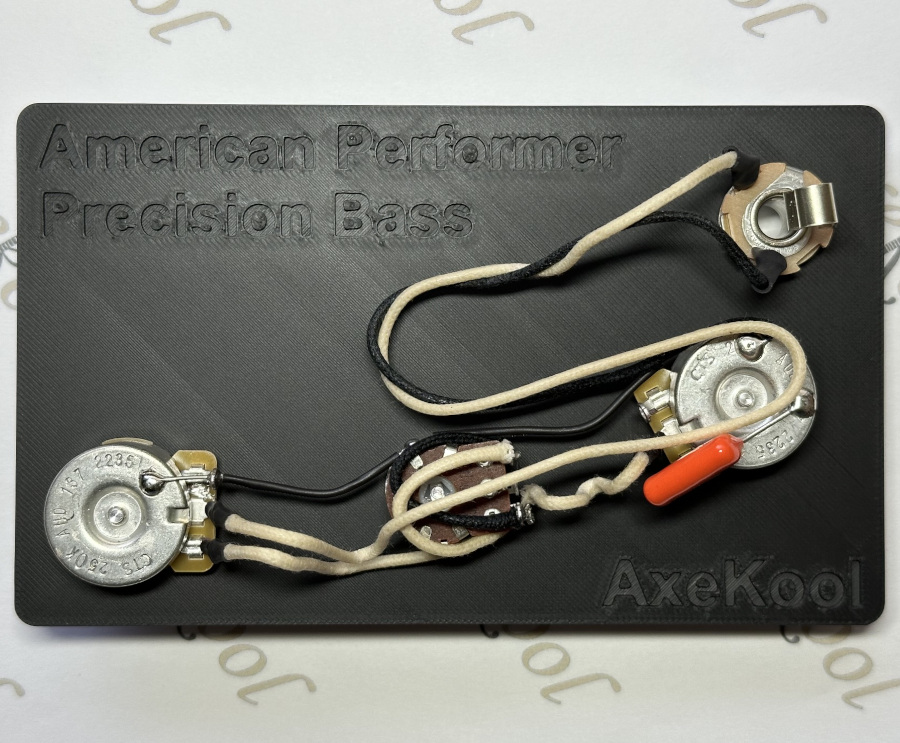

This pre-wired Fender American Performer Precision Bass Vintage Wiring Harness with Blend Pot is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Fender Bass harnesses together. Everything is fully tested before being posted to you.

This is a Professional American Performer Precision Bass wiring harness using the very best in components to enhance the quality of tone and sound output from your guitar.

Components
Premium 250k CTS Potentiometers x 2, Solid Shaft.
Premium 250K Bourns Blend Balance Pot x 1, Solid Shaft.
Switchcraft Jack Socket.
Capacitor / Sprague Orange Drop 0.047uF.
Gavitt USA made cloth covered 22AWG wire.
Tinned-copper “buss” ground wire.
Jack Socket and Pots supplied with Nut, Flat Washer & Locking Star Washer.
You are welcome to Contact Us with your custom requirements.

Controls
Master Volume Control.
Pickup Blender Control.
Master Tone.

Will this fit my guitar?
Our pre-wired Fender American Performer Precision Bass Wiring Harness is wired to fit genuine Fender USA or Mexican control plates. If installing into an imported model or a DIY guitar kit you will need to ensure the Potentiometer holes on the control plate will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Centre of Volume pot 1 to centre of Blend pot 2 – 53mm.
Centre of Blend pot 2 to centre of tone pot – 53mm.
Jack socket located on the side of the Bass.
These measurements were taken from a USA Fender American Performer Precision Bass control plate. If your measurements are different from the above, please let us know and we will build your harness to your specifications.

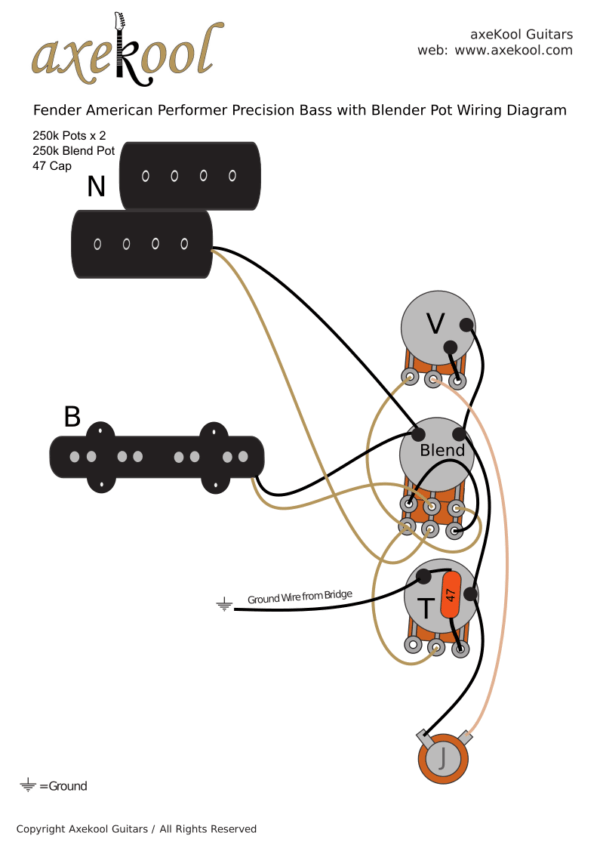

Installation, Wiring Diagram and Support
Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your Fender American Performer Precision Bass Vintage Wiring Harness with Blend Pot with a fitting guide and simple to follow wiring diagram.
We also offer full support should you need it.

Order Times
We make everything to order and the turnaround time for a Fender American Performer Precision Bass Vintage Wiring Harness with Blend Pot is 48 hours.
