Fender Mustang Vintage Wiring Harness

Description

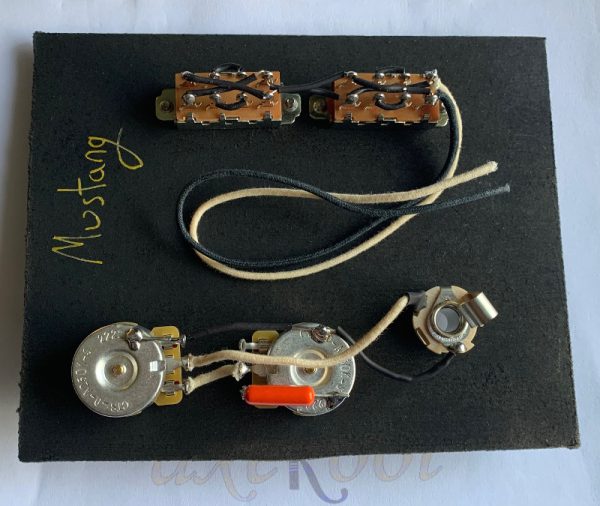

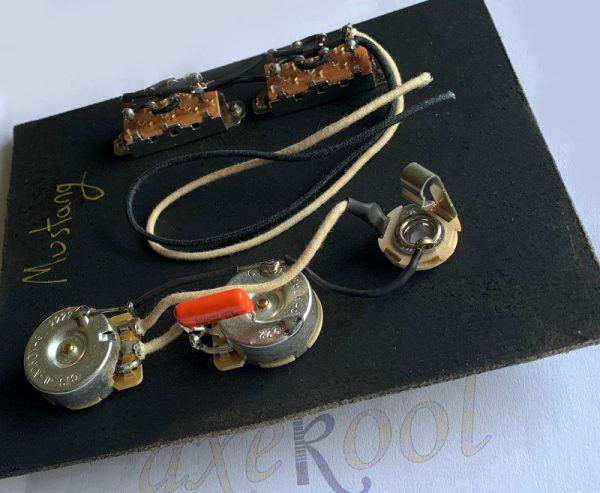

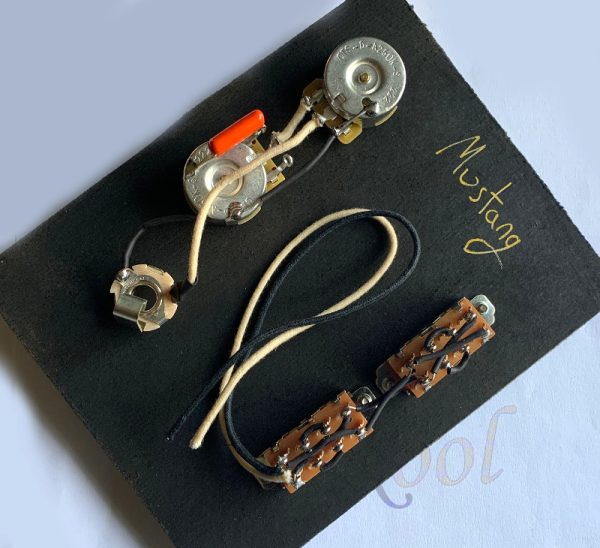

Fender Mustang Vintage Style Wiring Harness

This pre-wired Fender Mustang Vintage Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Fender Mustang harnesses together. Everything is fully tested before being posted to you.

This is a Professional Mustang wiring harness using the very best in components to enhance the quality of tone and sound output from your guitar.

Read about our Vintage Wiring Harnesses Here. We use our Mustang vintage wiring harnesses in our workshop for our clients guitar upgrades and also for our Axeify guitar upgrading services, read more Here.

Components
Premium 250k CTS Potentiometers x 2 with Vintage Audio Taper – Solid Shaft or Split Shaft
Swictchraft 3 Position Slide Switches – Black or White tips available
Capacitor / Sprague Orange Drop – Size 0.047uF.
Switchcraft Jack Socket.
Tinned-copper “buss” ground wire.
Gavitt USA made cloth covered 22AWG wire.
Jack Socket and Pots supplied with Nut, Flat Washer & Locking Star Washer.
You are welcome to Contact Us with your custom requirements.

Controls
Master Volume Control.
Master Tone Control.

Switching
The 2 switch system on a Mustang is called a “Phase Slider” This is a typical setup.

Here is an overview of how the Phase Slider settings work. B means back (switch towards the bridge), C means centre position OFF, F means front (switch towards the neck).

CC – Both pickups OFF
BC – Rear pickup only
FC – Rear pickup only
CB – Front pickup only
CF – Front pickup only
BB – Both pickups, in-phase
FF – Both pickups, in-phase
BF – Both pickups, out-of-phase
FB – Both pickups, out-of-phase

Will this fit my guitar?
Our pre-wired Fender Mustang Vintage Wiring harness is wired to fit genuine Fender USA or Mexican control plates. If installing into an imported model, you will need to ensure the Potentiometer holes on the control plate will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Measurements between components
Centre of Volume to Tone pot = 50mm.
Centre of Tone Pot to Jack Socket = 40mm.
These measurements were taken from a USA Fender Mustang Control Plate.

Installation, Documents & Support

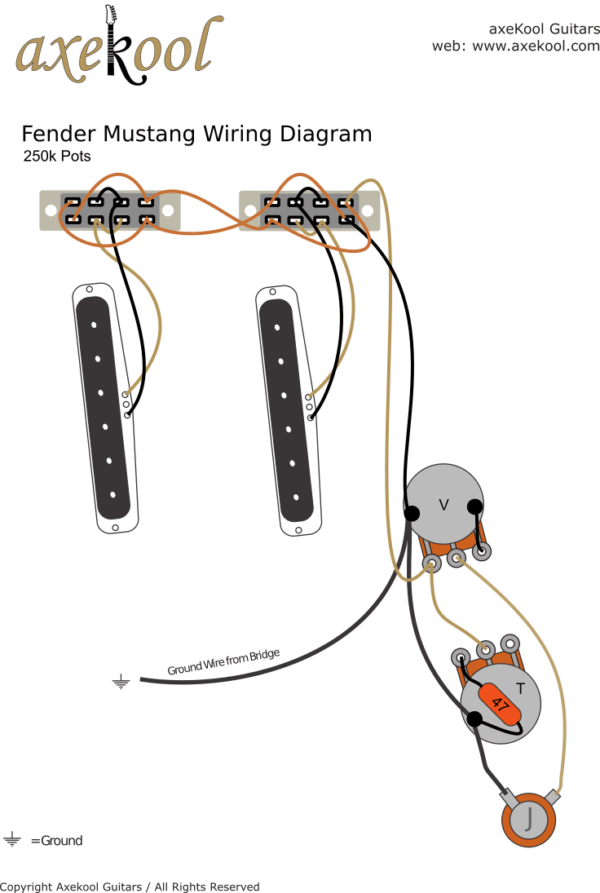

Please see our Support Page for wiring diagrams and fitting instructions.
The Mustang wiring harness is one of the more simple harnesses to fit with just a few wires to solder and easy access via a control panel and pickguard which can be removed to work on. We have made it as simple as possible to install your Fender Mustang Vintage Wiring Harness. We offer full after support should you need it.

Order Times
We make everything to order and the turnaround time for a Fender Mustang Vintage Wiring Harness is 48 hours.

Fender Mustang Vintage Wiring Harness, Mustang Wiring Loom
