Fender Mustang Vintage Wiring Kit

Description

Fender Mustang Vintage Style Wiring Kit

This Fender Mustang Vintage Wiring Kit is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Fender Mustang Kits together. Everything is fully tested before being posted to you.

This is a Professional Mustang Wiring Kit using the very best in components to enhance the quality of tone and sound output from your guitar.

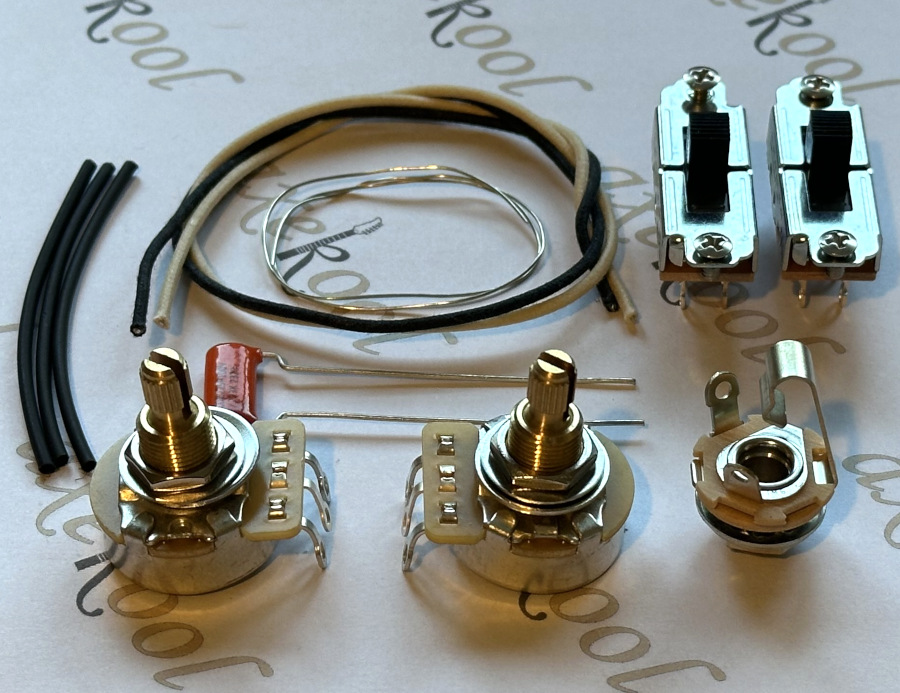

Components
Premium 250k CTS Potentiometers x 2, Solid Shaft or Split Shaft
Switchcraft 3 Position Slide Switches – Black or White tips available
Capacitor / Sprague Orange Drop – Size 0.047uF.
Switchcraft Jack Socket.
Tinned-copper “buss” ground wire.
Gavitt USA made cloth covered 22AWG wire.
Heat Shrink Tubing
Jack Socket and Pots supplied with Nut, Flat Washer & Locking Star Washer.
You are welcome to Contact Us with your custom requirements.

Controls
Master Volume Control.
Master Tone Control.

Switching
The 2 switch system on a Mustang is called a “Phase Slider” This is a typical setup.

Here is an overview of how the Phase Slider settings work. B means back (switch towards the bridge), C means centre position OFF, F means front (switch towards the neck).

CC – Both pickups OFF
BC – Rear pickup only
FC – Rear pickup only
CB – Front pickup only
CF – Front pickup only
BB – Both pickups, in-phase
FF – Both pickups, in-phase
BF – Both pickups, out-of-phase
FB – Both pickups, out-of-phase

Will this fit my guitar?
Our Fender Mustang Vintage Wiring Kit is designed to fit genuine Fender USA or Mexican control plates. If installing into an imported model, you will need to ensure the Potentiometer holes on the control plate will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Installation, Wiring Diagram and Support
Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your Fender Mustang Vintage Wiring Kit with a fitting guide and simple to follow wiring diagram.
We also offer full support should you need it.

Order Times
The turnaround time for a Fender Mustang Vintage Wiring Kit is 48 hours.
