Fender Precision (P Bass) Bass Left Handed Vintage Wiring Harness

Description

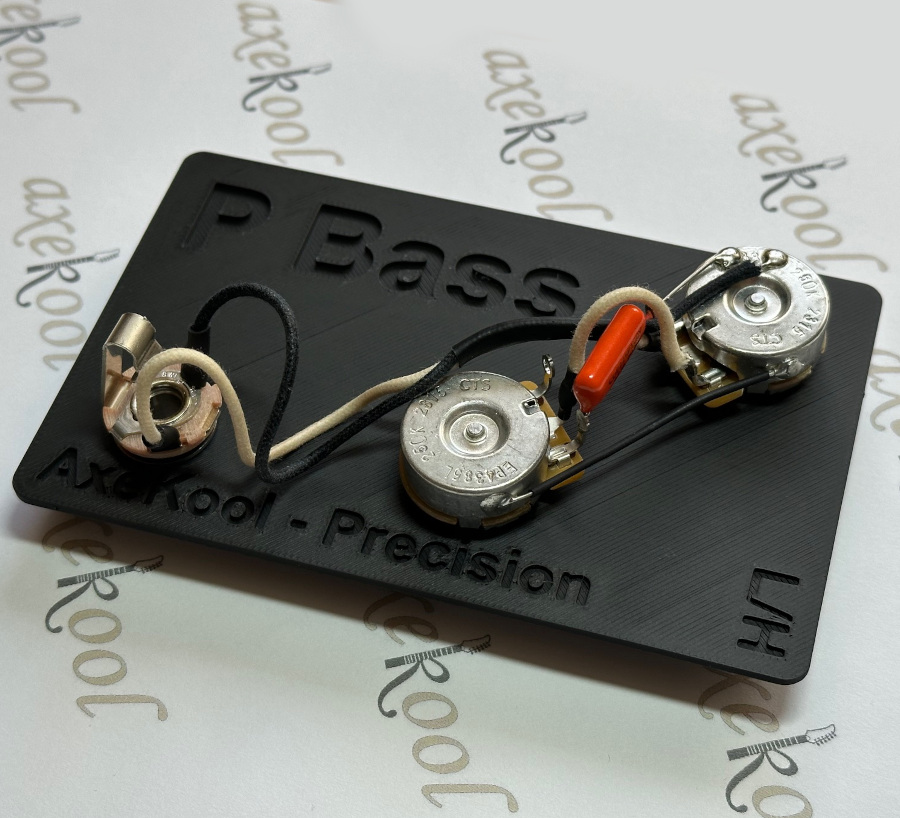

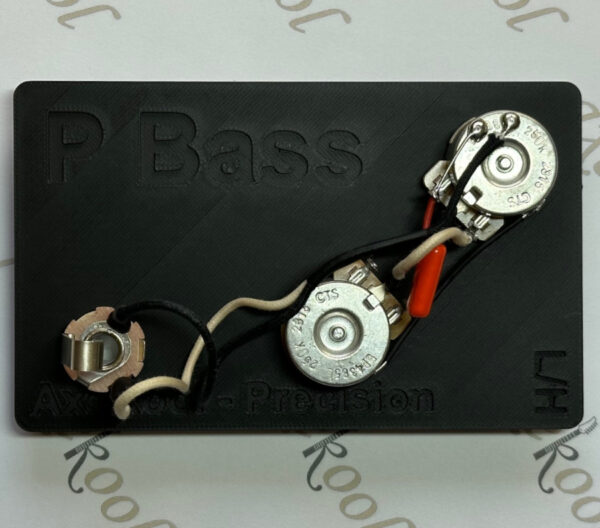

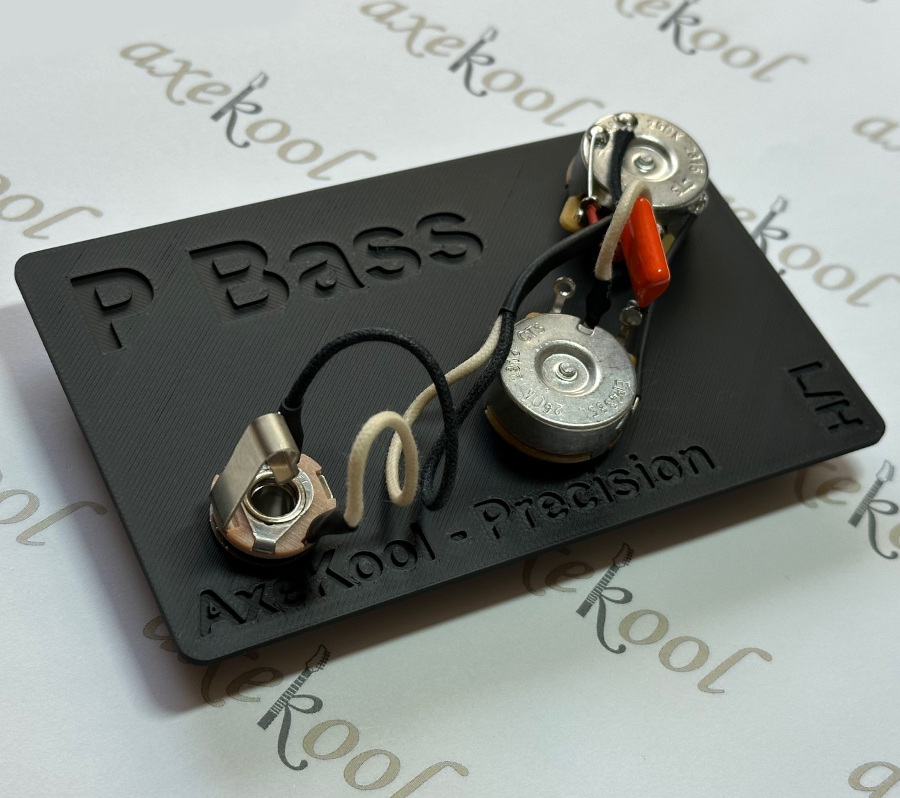

Fender Precision Bass (P Bass) Left Handed Vintage Wiring Harness

This pre-wired Fender Precision Left Handed Vintage Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our P Bass Left Handed Harnesses together. Everything is fully tested before being posted to you.

This is a Professional Precision Bass Left Handed Wiring Harness using the very best in components to enhance the quality of tone and sound output from your guitar.

Components
USA 250k CTS Potentiometers x 2, Reverse Taper Split Shaft / Supplied with Brass Solid Shaft Conversion Sleeves.
Switchcraft USA Jack Socket.
Sprague Orange Drop Capacitor x 1, Size 0.047uF.
Gavitt USA Cloth Covered 22AWG Wire.
Tinned Copper “Buss” Ground Wire.
Mounted on a 3D Printed Wiring Template.
Jack Socket and Pots supplied with Nut, Flat Washer & Locking Star Washer.
You are welcome to Contact Us with your custom requirements.

Controls
Master Volume control.
Master Tone control.

Will this fit my guitar?
Our pre-wired Fender Precision Bass Left Handed Vintage Wiring harness is wired to fit genuine Fender USA / Mexican control plates. If installing into an imported model / DIY guitar kit you will need to ensure the Potentiometer holes on the control plate will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Centre of Volume pot to centre of tone pot – 53mm.
Centre of tone pot to centre of jack socket – 53mm.
These measurements were taken from a Left Handed USA / Mexican Fender Precision Bass control plate. If your measurements are different from the above, please let us know and we will build your harness to your specifications.

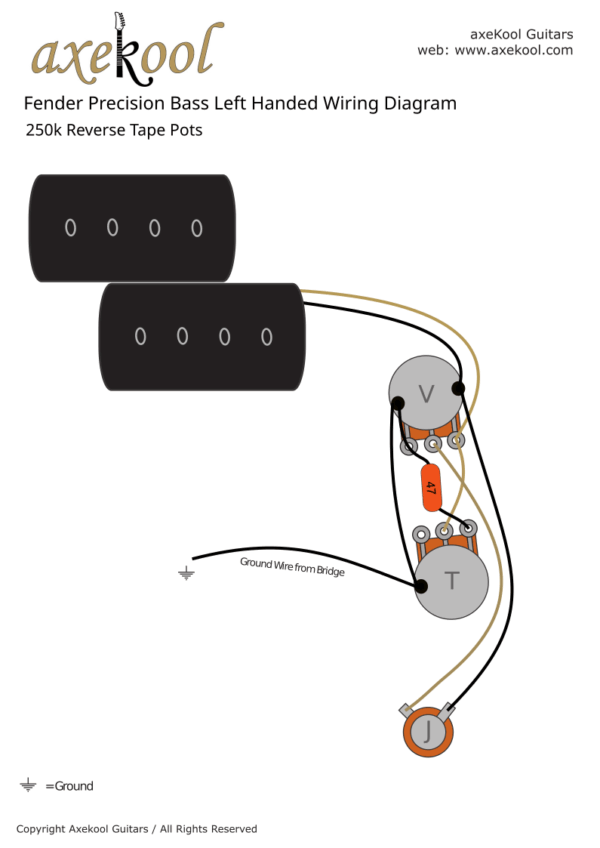

Installation, Wiring Diagram and Support
Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your Fender Precision Left Handed Vintage Wiring Harness with a fitting guide and simple to follow wiring diagram.
We also offer full support should you need it.

Order times
We make everything to order and the turnaround time for a Fender Precision Left Handed Vintage Wiring Harness is 48 hours.
