Fender Stratocaster 7 Way Modern Wiring Harness

Description

Fender Stratocaster 7 Way Modern Wiring Harness

To fit 3 x (SSS) single coil pickup models

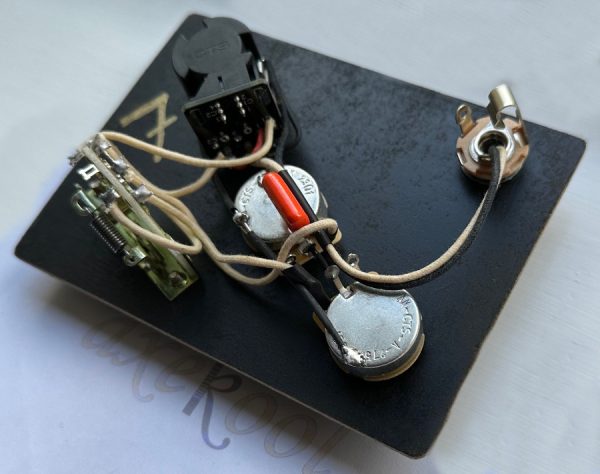

This pre-wired Fender Stratocaster 7 Way Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Fender Stratocaster 7 Way Harnesses together. Everything is fully tested before being posted to you.

The function of the push n pull pot in the volume position is to activate the bridge pickup. This gives you a total of 7 unique pickup options and with the push n pull pot in the normal down/off position, the Stratocaster will be as standard.

This is a modern style Stratocaster wiring harness where the bridge pickup has a tone control. Tone 1, nearest the volume, controls the tone for the Neck & Middle pickups. Tone 2, nearest the jack socket, controls the tone for the bridge pickup. We have also fitted this with a .022uF capacitor as used on many modern Stratocaster signature models like the SRV, John Mayer and many other models.

This is a Professional Stratocaster wiring harness using the very best in components to enhance the quality of tone and sound output from your guitar.

Read about our Wiring Harnesses Here. We use our Stratocaster Wiring Harnesses in our workshop for our clients guitar upgrades and also for our Axeify guitar upgrading services, read more Here.

Components
Premium 250k CTS Potentiometers x 2, split shaft with Vintage Audio Taper.
Push & Pull 250k CTS Pot Split shaft.
CRL vintage USA 5 way lever switch.
Switchcraft Jack Socket.
Capacitor / Sprague Orange Drop, Size 0.022uF.
Gavitt USA made cloth covered 22AWG wire.
Tinned-copper “buss” ground wire.
Jack Socket and Pots supplied with Nut, Flat Washer & Locking Star Washer.
You are welcome to Contact Us with your custom requirements.

Treble Bleed Option
A Treble Bleed takes the high treble tone frequencies out of the circuit at the volume pot and puts them back in the circuit as the signal leaves the volume pot. The result is a smoothed out treble and a more uniform tone from 1 to 10. Reducing the treble drop out as the volume pot rolls off. If you like the idea of retaining treble as you roll your volume pot down, then a treble bleed is for you.

Controls
Master Volume control. (Push n Pull Bridge Pickup Control On/Off)
Tone 1 – Neck pickup adjustment only.
Tone 2 – Middle pickup adjustment.

Standard Switching
Position 1 – Bridge pickup with volume and tone adjustment.
Position 2 – Bridge pickup with middle pickup in parallel with volume and tone adjustment.
Position 3 – Middle pickup with volume and tone adjustment.
Position 4 – Middle pickup with neck pickup in parallel with volume and tone adjustment.
Position 5 – Neck pickup with volume and tone adjustment.
Push n Pull switch activated Switching
Position 4 – All 3 Pickups activated.
Position 5 – Neck and Bridge activated.

Will this fit my guitar?
Our pre-wired Fender Stratocaster 7 Way Wiring harness is wired to fit genuine Fender USA or Mexican control plates. If installing into an imported model or a DIY guitar kit you will need to ensure the Potentiometer holes on the Pickguard will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Centre of Switch to volume pot – 48mm.
Centre of volume pot to centre of tone pot 1 – 45mm.
Centre of tone pot 1 to tone pot 2 – 45mm.
These measurements were taken from a USA / Mexican Fender Stratocaster pickguard.

Installation, Documents & Support

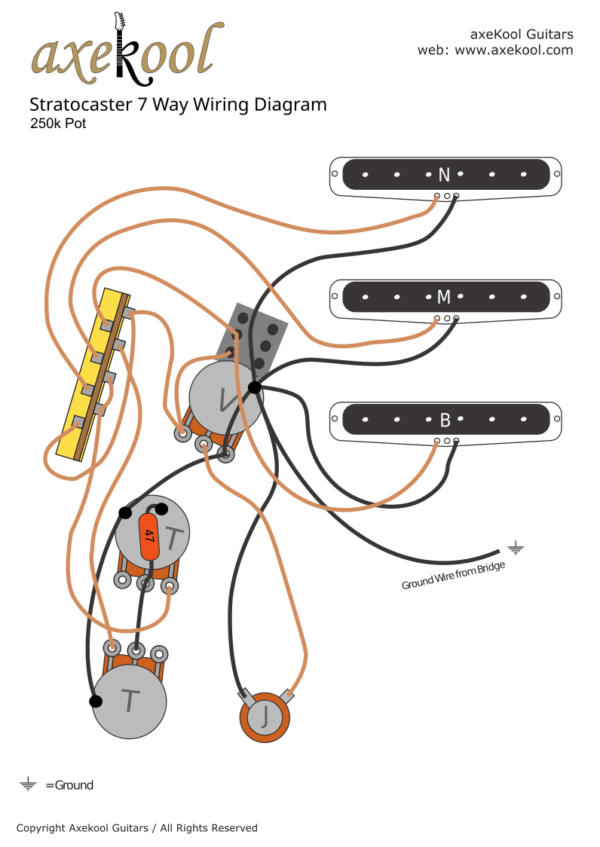

Please see our Support Page for wiring diagrams and fitting instructions.
The Fender Stratocaster 7 Way Wiring Harness is one of the more simple harnesses to fit with 9 wires to solder, 3 x ground and 3 hot wires from the pickups and 1 ground and 1 hot going to the jack and the ground wire from the bridge. All ground wires go to the back of the Volume Potentiometer and the pickup hot wires go to the 3 in a line, unused lugs on the 5 way switch. There is sometimes an additional ground wire from the body which you will need to solder to the back of the Volume Potentiometer. We have made it as simple as possible to install your Fender Stratocaster 7 Way Wiring Harness. We offer full after support should you need it.

Order Times
We make everything to order and the turnaround time for a Fender Stratocaster 7 Way Wiring Harness is 48 hours.
