Gibson & Epiphone Explorer Vintage Wiring Harness with Coil Split

Description

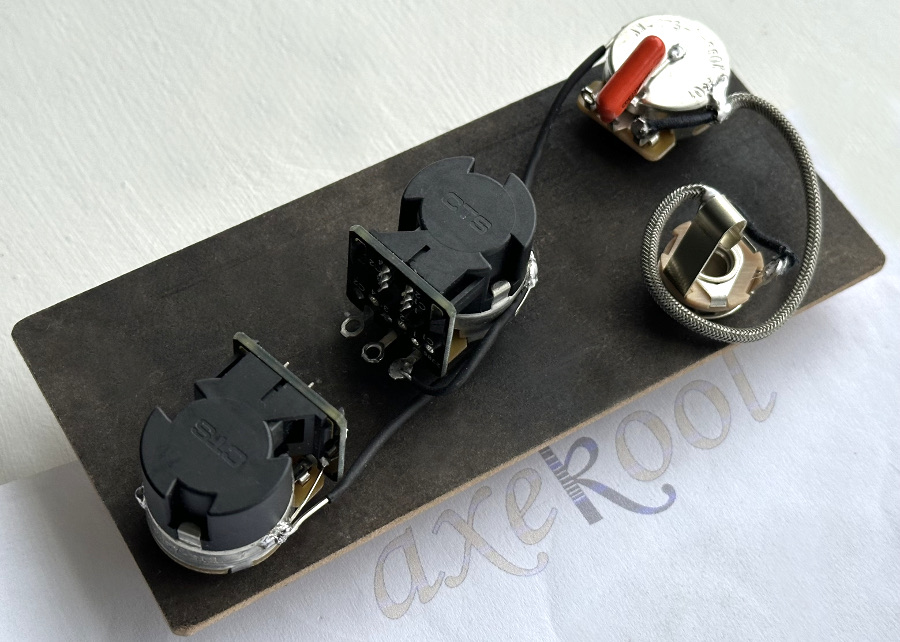

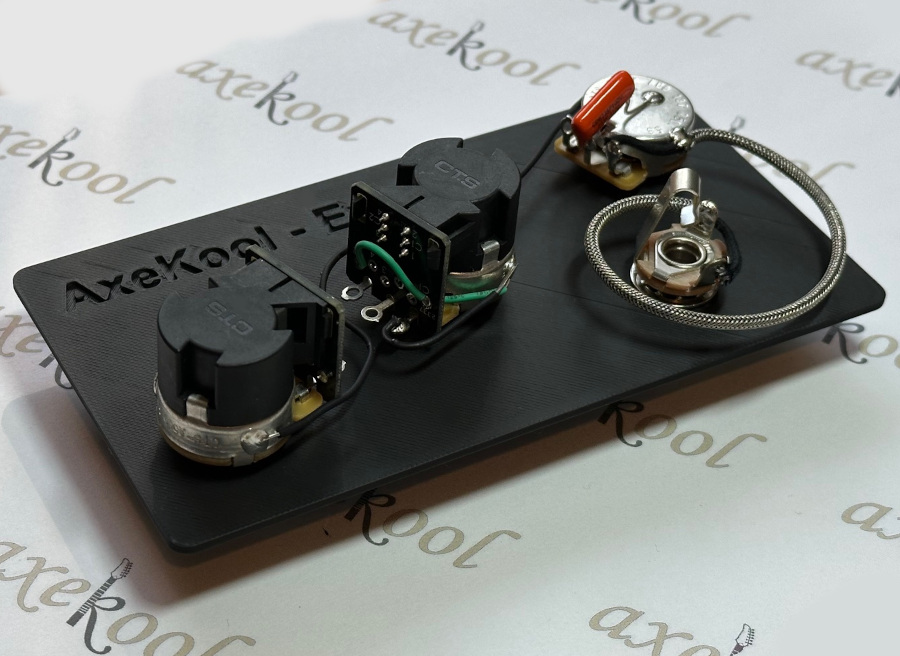

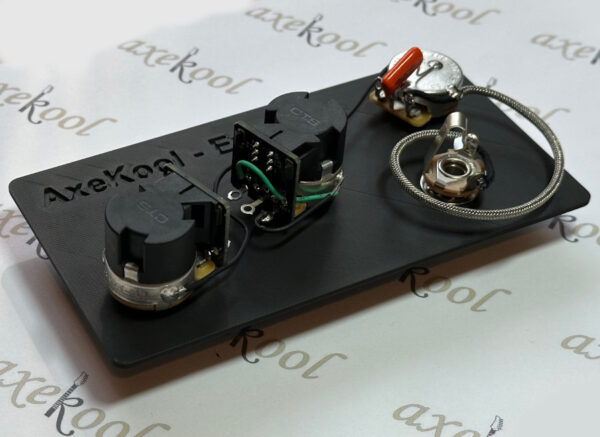

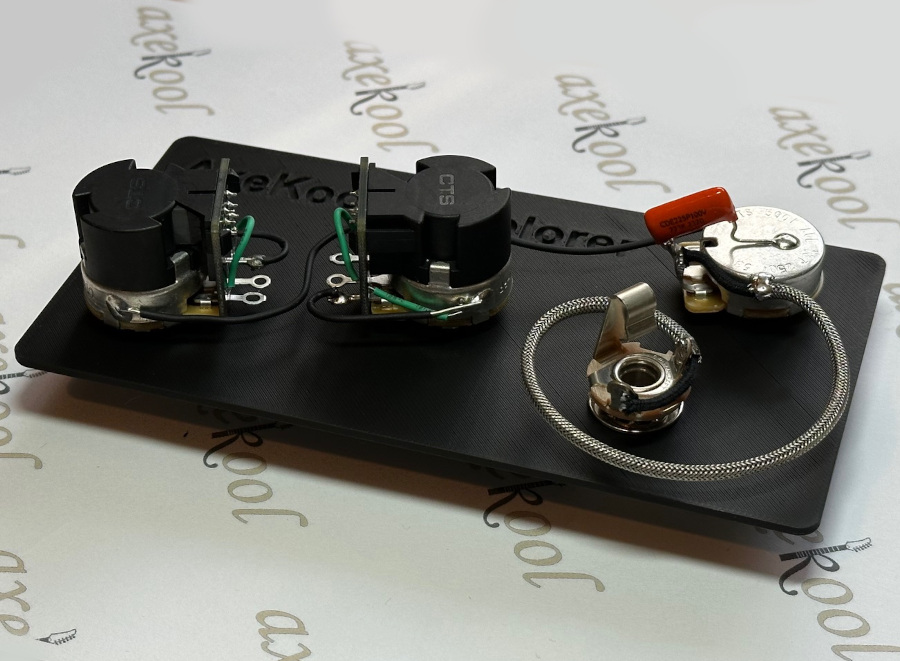

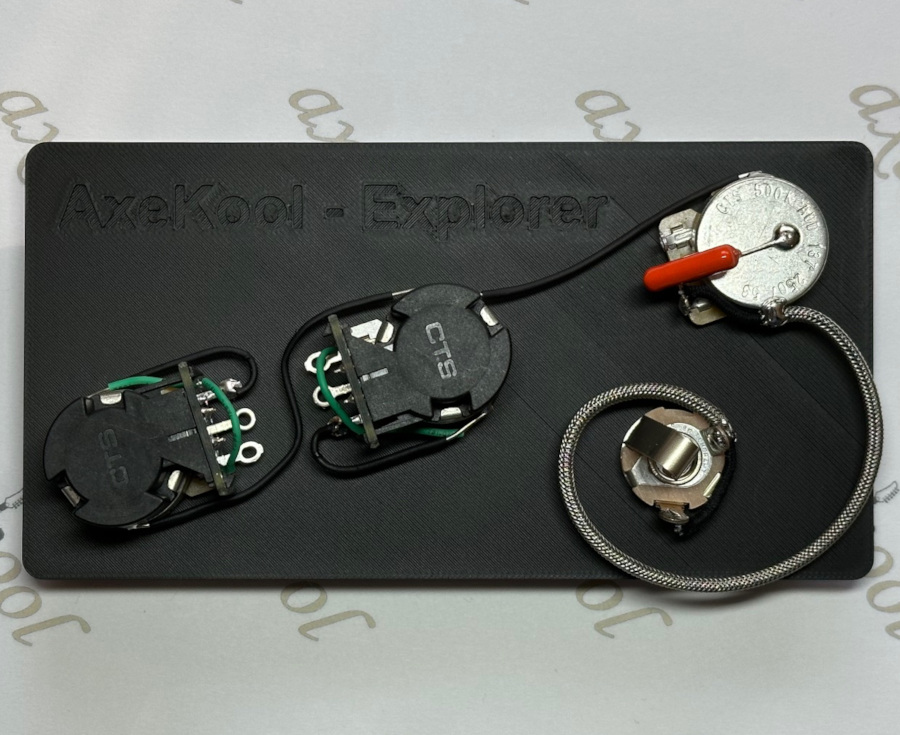

Gibson & Epiphone Explorer Coil Split Push & Pull Wiring Harness

This pre-wired Gibson & Epiphone Explorer Coil Split Push & Pull Vintage Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Gibson & Epiphone Explorer Coil Split Push & Pull harnesses together. Everything is fully tested before being posted to you.

This is a Professional Explorer wiring harness using the very best in components to enhance the quality of tone and sound output from your guitar.

Components
USA 500k CTS Potentiometers x 1, Split Shaft.
USA 500k CTS Push & Pull Potentiometers x 2, Split Shaft.
Switchcraft USA Jack Socket.
Sprague Orange Drop Capacitor x 1, Size 0.022uF.
Gavitt USA Braided wire.
Tinned Copper “Buss” Ground Wire.
Mounted on a 3D Printed Wiring Template.
Jack Socket and Pots supplied with Nut, Flat Washer & Locking Star Washer.
You are welcome to Contact Us with your custom requirements.

Controls
Volume 1 – Bridge / Push & Pull for Pickup Coil Split.
Volume 2 – Neck / Push & Pull for Pickup Coil Split.
Master Tone

Will this fit my guitar?
Our pre-wired Explorer Wiring harness is wired to fit genuine Gibson & Epiphone models. If installing into an imported model / DIY guitar kit you will need to ensure the Potentiometer holes will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Pot Spacing is normally 60mm apart –  centre to centre
When ordering, please email us the distance (centre to centre) of the 3 pots on your Explorer. There are several variations of the Explorer pots spacing. We allow plenty of movement in wire lengths between components to allow for a comfortable fit.

Installation, Wiring Diagram and Support

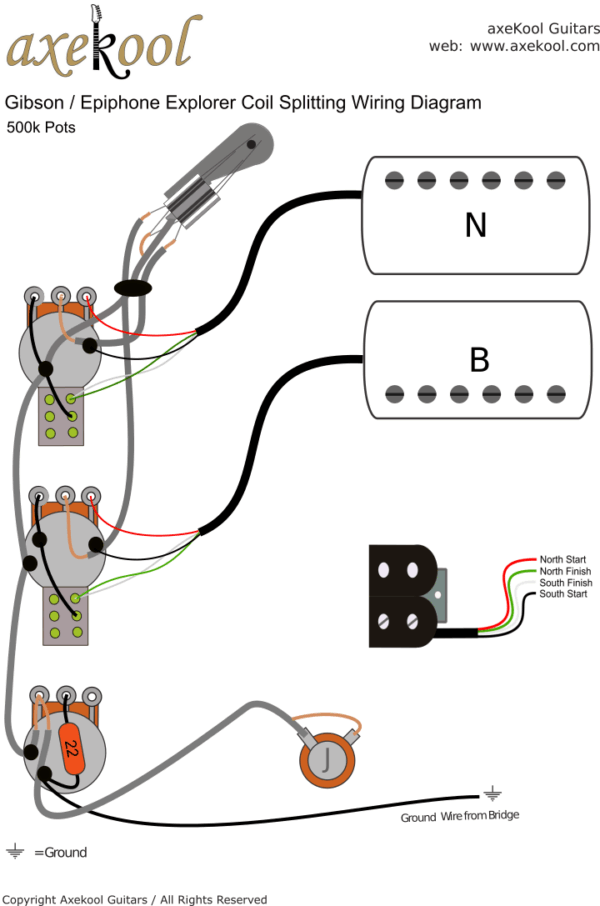

Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your Gibson & Epiphone Explorer Coil Split Push & Pull Vintage Wiring Harness with a fitting guide and simple to follow wiring diagram.
We also offer full support should you need it.

Order Times
We make everything to order and the turnaround time for a Gibson & Epiphone Explorer Coil Split Push & Pull Vintage Wiring Harness is 48 hours.

Gibson / Epiphone Explorer Coil Split Push & Pull Vintage Wiring Harness
