Gibson & Epiphone Les Paul Junior Vintage Wiring Harness

Description

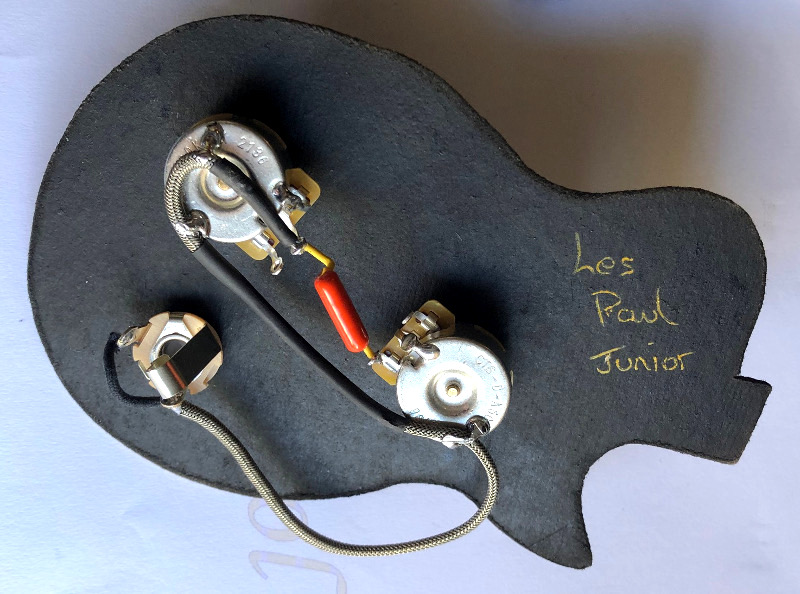

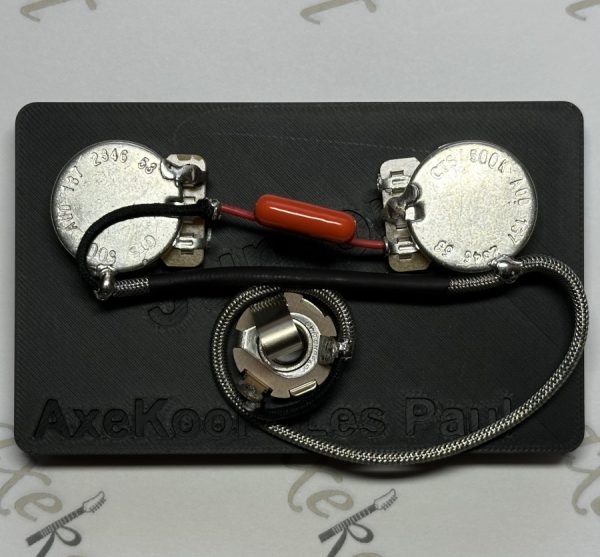

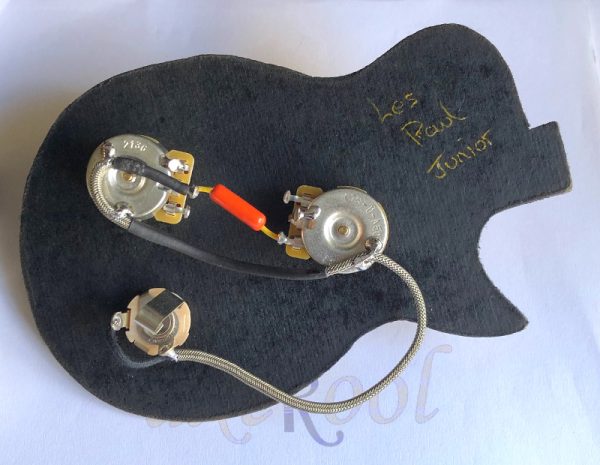

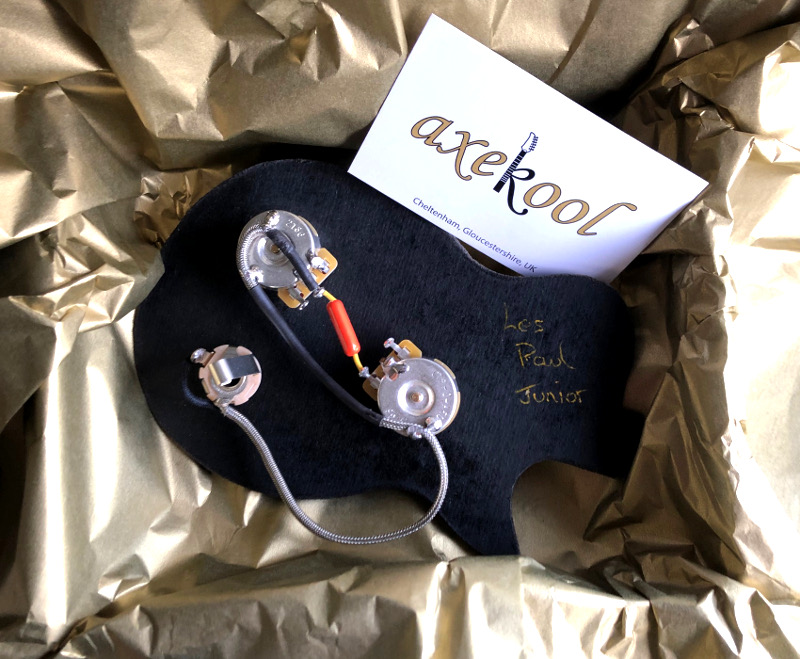

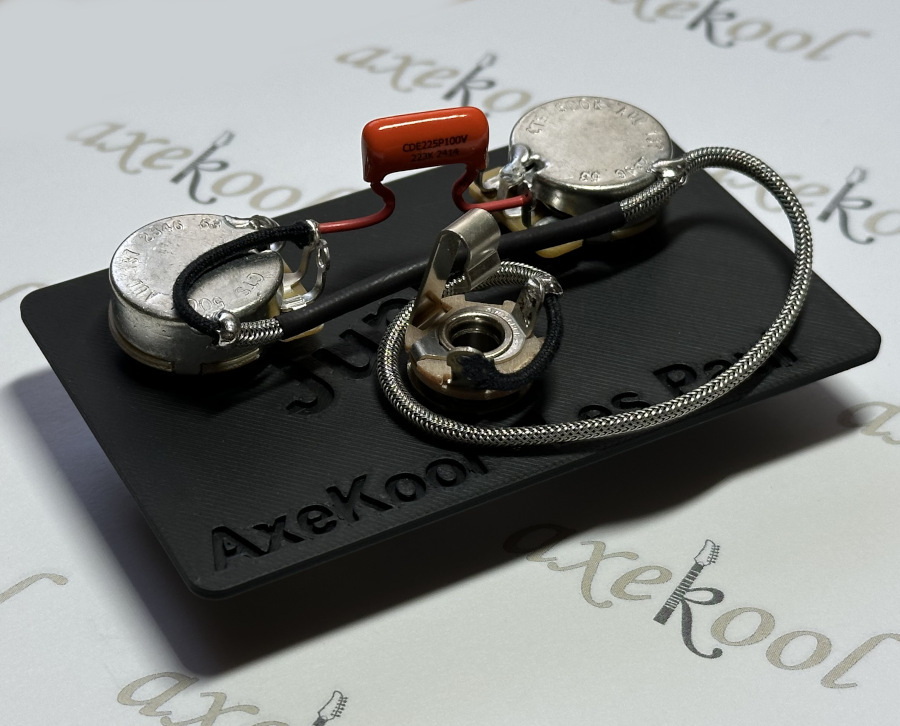

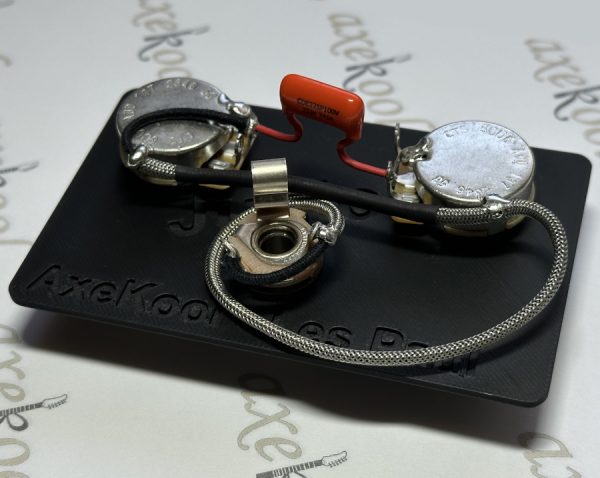

Gibson & Epiphone Les Paul Junior Vintage Style Wiring Harness

This pre-wired Gibson & Epiphone Les Paul Junior 50’s Vintage Style Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Gibson & Epiphone Les Paul harnesses together. Everything is fully tested before being posted to you.

This is a Professional Les Paul wiring harness using the very best in components to enhance the quality of tone and sound output from your guitar.

Read about our Vintage Wiring Harnesses Here. We use our Les Paul Junior vintage wiring harnesses in our workshop for our clients guitar upgrades and also for our Axeify guitar upgrading services, read more Here.

Components
Premium 500k CTS Potentiometers x 2, short or long split shaft with vintage audio taper (fitted with additional nut for height adjustment on the long shaft pot).
Switchcraft USA Jack Socket.
Capacitor / 0.022uF Sprague Orange Drop.
Gavitt USA made braided wire.
Jack Socket and Pots supplied with Nut, Flat Washer & Locking Star Washer.
You are welcome to Contact Us with your custom requirements.

Long or Short Potentiometers? (Pots)
If you are unsure of the pot length required on your Les Paul Junior guitar, then please order the Long Pots as they will fit all models and can also be adjusted in length due to the extra nut fitted, where if you order the Short Pots they may not be long enough.
Short Pot threaded bushing height: 9.52mm.
Long Pot threaded bushing height: 19.05mm (supplied with 2 nuts for height adjustment).

Controls
Master Volume Control.
Master Tone Control.

Will this fit my guitar?
Our pre-wired Les Paul Wiring harness is wired to fit genuine Gibson & Epiphone models. If installing into an imported model / DIY guitar kit you will need to ensure the Potentiometer holes will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Centre of volume pot to centre of tone pot – 63mm.
These measurements were taken from a USA Gibson Les Paul Junior.
Measurements can sometimes vary slightly on some Les Paul Junior Models, so we allow plenty of movement in wire lengths between components to allow for a comfortable fit. If your measurements are different from the above, please let us know and we will build your harness to your specifications.

Installation, Documents & Support
Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your Gibson & Epiphone Les Paul Junior Vintage Wiring Harness with a fitting guide and simple to follow wiring diagram. We also offer full support should you need it.

Order Times
We make everything to order and the turnaround time for a Gibson & Epiphone Les Paul Junior Vintage Wiring Harness is 48 hours.

Gibson / Epiphone Les Paul Junior Vintage Wiring Harness
