Gibson & Epiphone Les Paul Peter Frampton Left Handed Wiring Harness (3 Pickups)

Description

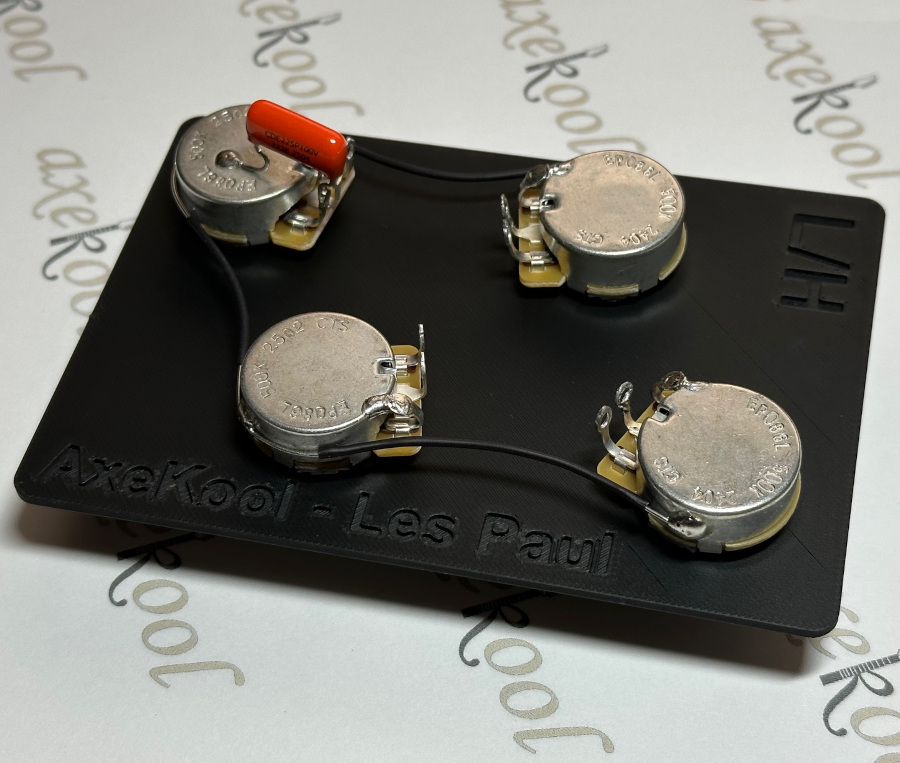

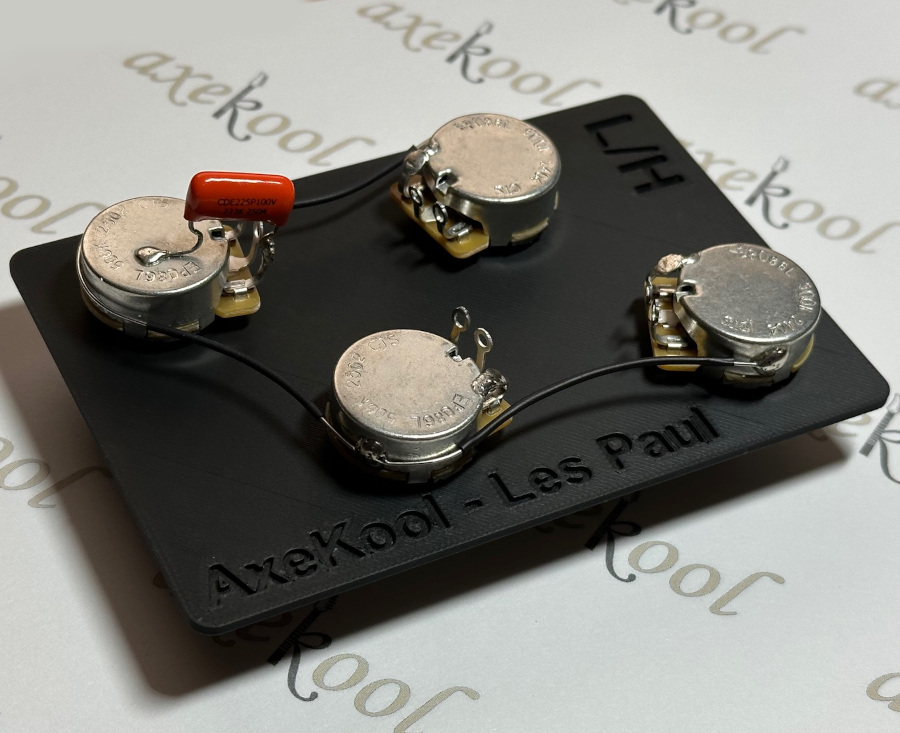

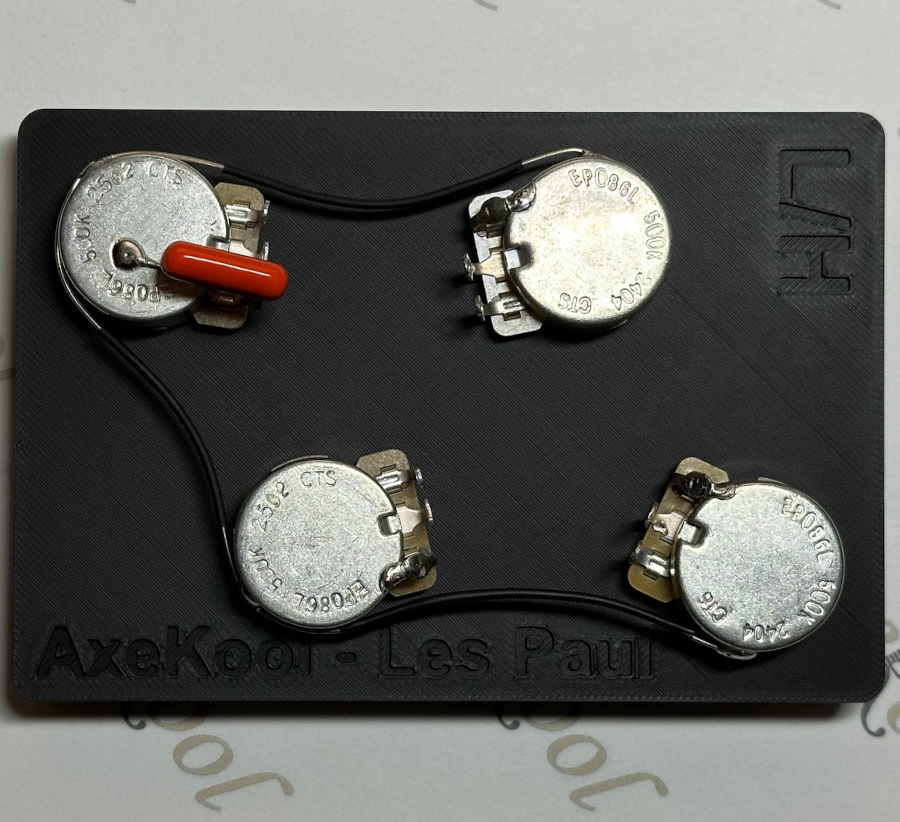

Gibson & Epiphone Les Paul, Peter Frampton Left Handed Wiring Harness

This Les Paul Harness is wired to the Peter Frampton wiring schematic for 3 Humbuckers.

The Peter Frampton configuration gives you full control of all 3 pickups to use individually or altogether in any order and a master tone.

Peter Frampton Configuration
The Peter Frampton wiring with a 3 volume and 1 master tone configuration is where the 2nd Tone control is reassigned to the Middle pickup Volume control. The Middle pickup is always on (regardless of the toggle switch position) and you can blend it in with either or both the Bridge & Neck. With the switch in the middle position, you can turn down the bridge and neck and feature only the middle pickup. Basically it gives you full control of all 3 pickups to use individually or altogether in any order and a master tone.

This pre-wired Gibson & Epiphone Les Paul, Peter Frampton Left Handed Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Gibson & Epiphone Les Paul, Peter Frampton Left Handed Harnesses together. Everything is fully tested before being posted to you.

This is a Professional Les Paul Left Handed Wiring Harness using the very best in components to enhance the quality of tone and sound output from your guitar.

Components
USA 500k CTS Potentiometers x 4, Reverse Taper, Standard Length, Split Shaft.
Sprague Orange Drop Capacitor x 1, Size 0.022uF.
Tinned Copper Ground Wire.
Mounted on a 3D Printed Wiring Template.
Pots Supplied with Nut, Flat Washer & Locking Star Washer.
You are welcome to Contact Us with your custom requirements.

Controls
Volume 1 – Bridge.
Volume 2 – Middle.
Volume 3 – Neck.
Tone 1 – Master.

Will this fit my guitar?
Our pre-wired Les Paul, Peter Frampton Left Handed Wiring harness is wired to fit genuine Gibson & Epiphone models. If installing into an imported model / DIY guitar kit you will need to ensure the Potentiometer holes will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Centre of neck volume pot and neck tone pot – 63mm.
Centre of neck volume pot and bridge volume pot – 50mm.
Centre of neck tone pot and bridge tone pot – 50mm.
Centre of bridge volume pot and bridge tone pot – 61mm.
Measurements can sometimes vary slightly on some Left Handed Les Paul models, so we allow plenty of movement in wire lengths between components to allow for a comfortable fit.
If your measurements are different from the above, please let us know when you order and we will build your harness to your specifications.

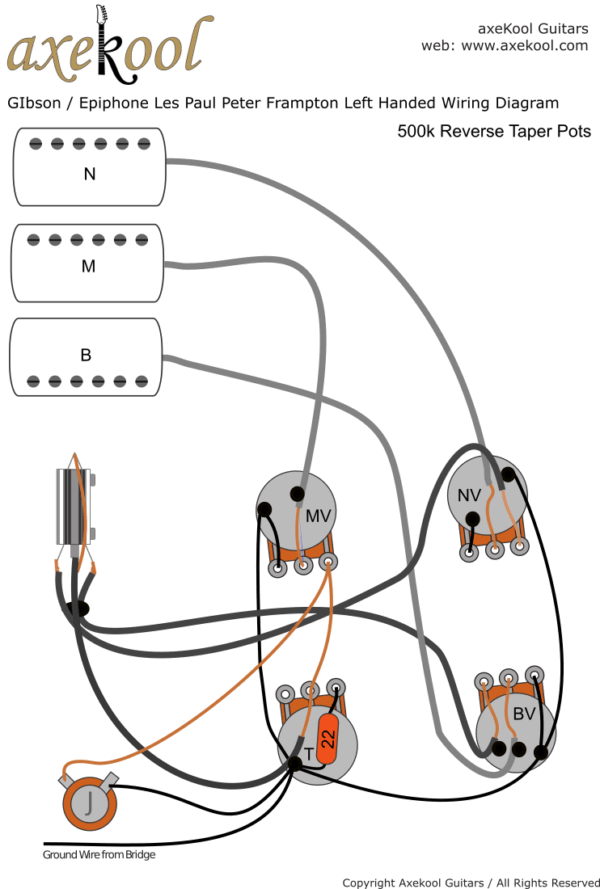

Installation, Wiring Diagram and Support
Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your Gibson & Epiphone Les Paul, Peter Frampton Left Handed Vintage Wiring Harness with a fitting guide and simple to follow wiring diagram. We also offer full support should you need it.

Order Times
We make everything to order and the turnaround time for a Gibson & Epiphone Les Paul, Peter Frampton Left Handed Vintage Wiring Harness is 48 hours.
