Gibson & Epiphone SG Custom 3 Pickups Vintage Wiring Harness

Description

Gibson & Epiphone SG Vintage Style Wiring Harness

This pre-wired Gibson & Epiphone SG Custom 3 Pickups Vintage Style Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Gibson & Epiphone SG Custom 3 Pickups Vintage harnesses together. Everything is fully tested before being posted to you.

This is a Professional SG Custom 3 Pickups wiring harness using the very best in components to enhance the quality of tone and sound output from your guitar.

Read about our Vintage Wiring Harnesses Here. We use our SG Custom 3 Pickups vintage wiring harnesses in our workshop for our clients guitar upgrades and also for our Axeify guitar upgrading services, read more Here.

Components
Premium 500k CTS Potentiometers x 4, short split shaft with vintage audio taper
Switchcraft Right Angle Toggle 3 Way Switch – Choice of switch knob colour is included, Cream, Amber or Black.
Switchcraft USA Jack Socket.
Sprague Orange Drop Capacitor, Size 0.022uF
Gavitt USA made Shielded / Braided cloth wire.
Jack Socket and Pots supplied with Nut, Flat Washer & Locking Star Washer.
You are welcome to Contact Us with your custom requirements.

Controls
Volume 1 – Bridge.
Volume 2 – Neck.
Volume 3 – Middle.
Master Tone

Switching
Position 1 – Bridge Pickup.
Position 2 – Bridge & Neck Pickup.
Position 3 – Neck Pickup.

Will this fit my guitar?
Our pre-wired SG Custom 3 Pickups Vintage Wiring harness is wired to fit all models including Gibson & Epiphone guitars. If installing into an imported model or a DIY guitar kit you will need to ensure the Potentiometer holes will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Centre of Switch to neck volume pot – 55mm.
Centre of switch to bridge volume pot – 55mm.
Centre of neck volume pot to centre of neck tone pot – 50mm.
Centre of bridge volume pot to centre of bridge tone pot – 50mm.
Centre of neck volume pot to bridge volume pot – 44mm.
Centre of neck tone pot to bridge tone pot – 44mm.
Centre of neck tone pot to centre of jack socket – 34mm.
Measurements can sometimes vary slightly on some SG Models, so we allow plenty of movement in wire lengths between components to allow for a comfortable fit. If your measurements are different from the above, please let us know and we will build your harness to your specifications.

Installation, Documents & Support

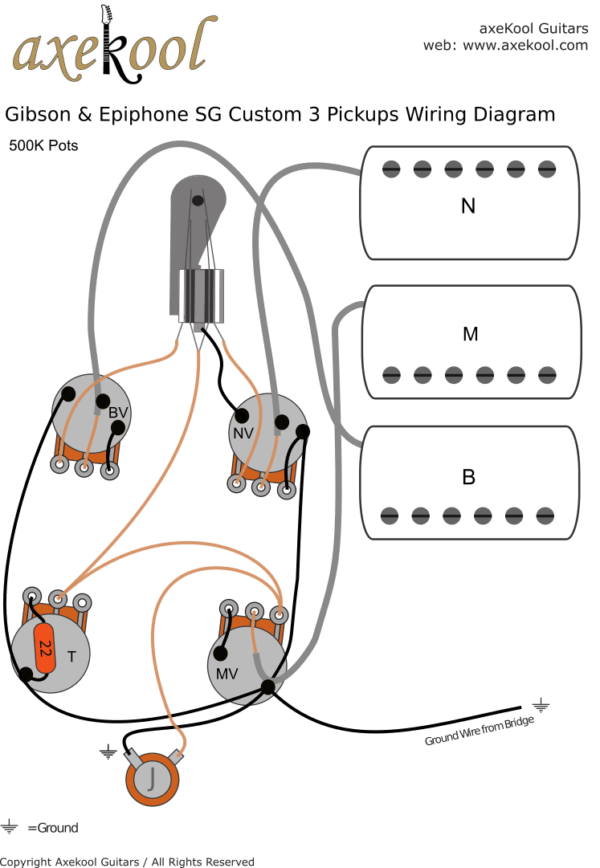

Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your Gibson & Epiphone SG Custom 3 Pickups Vintage Wiring Harness. We also offer full support should you need it.

Order Times
We make everything to order and the turnaround time for a Gibson & Epiphone SG Custom 3 Pickups Vintage Wiring Harness is 48 hours.

Gibson SG Custom 3 Pickups Vintage Wiring Harness, Epiphone SG Vintage Wiring Loom
