Gibson & Epiphone Thunderbird Bass Left Handed Vintage Wiring Harness

Description

Gibson & Epiphone Thunderbird Bass Left Handed Vintage Wiring Harness

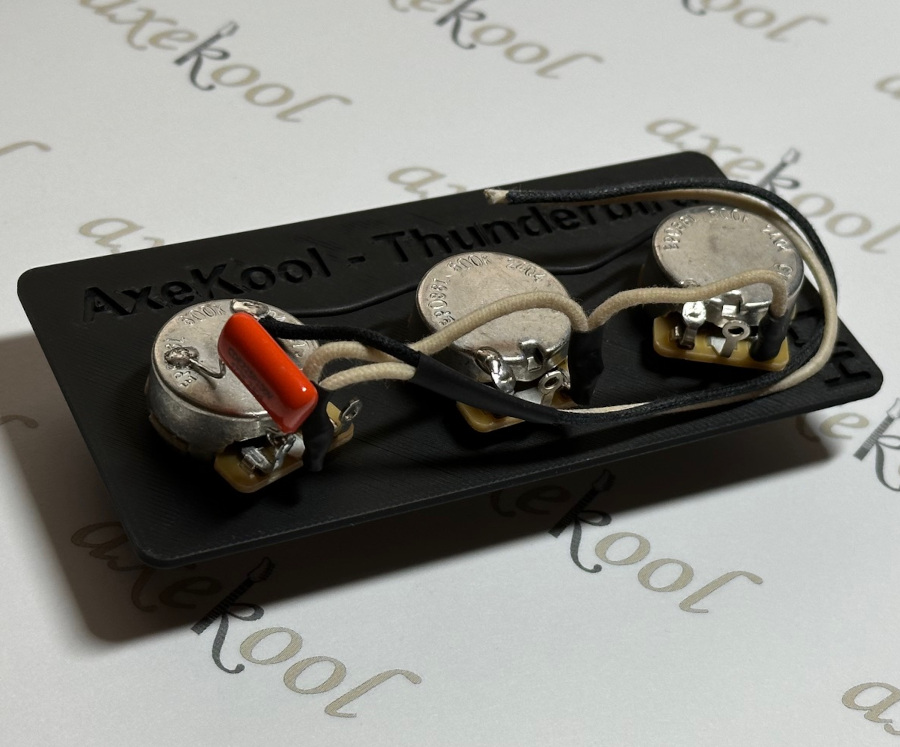

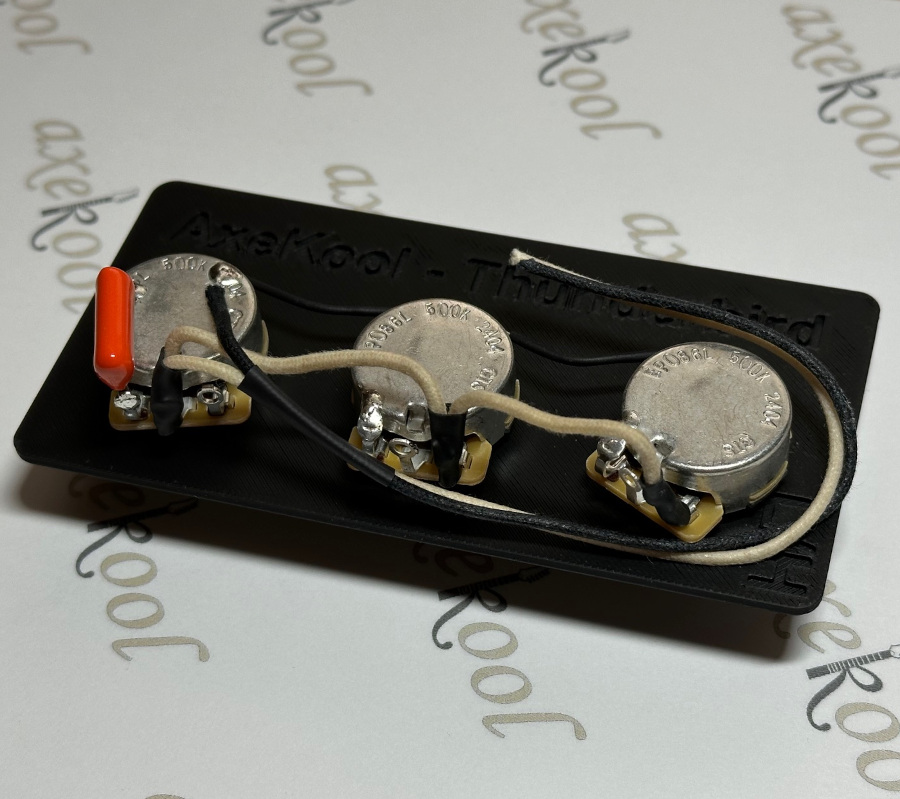

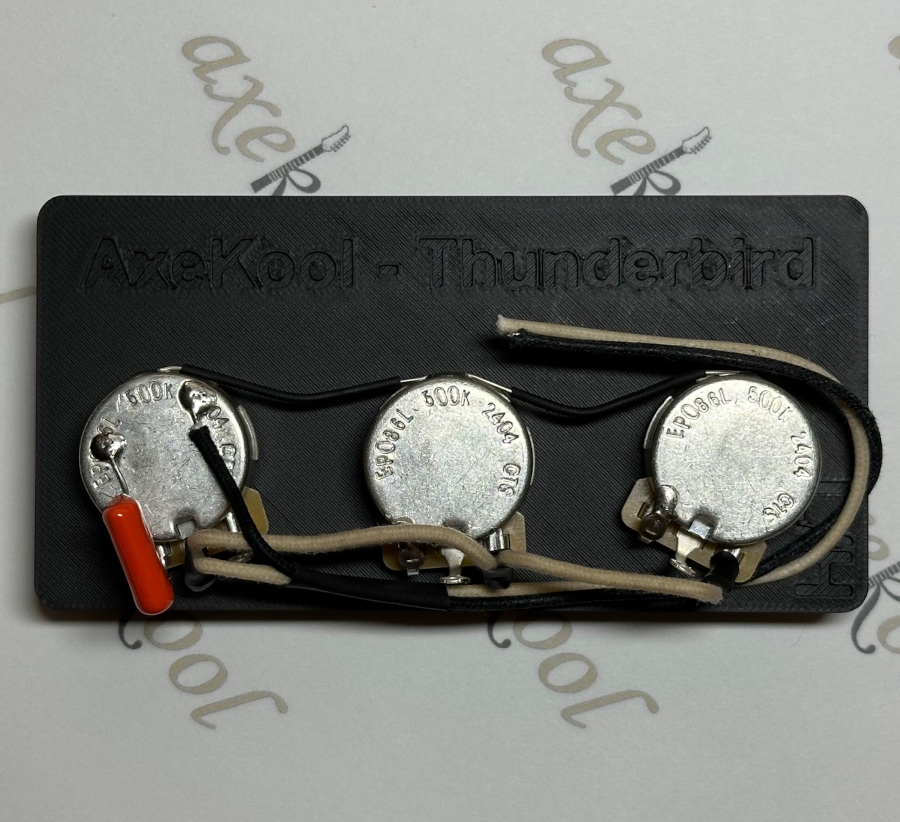

This pre-wired Gibson & Epiphone Thunderbird Bass Left Handed Vintage Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Thunderbird Bass Left Handed Wiring Harnesses together. Everything is fully tested before being posted to you.

This is a Professional Thunderbird Left Handed Wiring Harness using the very best in components to enhance the quality of tone and sound output from your guitar.

Components
USA 500k CTS Potentiometers x 3, Split Shaft.
Sprague Orange Drop Capacitor x 1, Size 0.047uF.
Gavitt USA Cloth Covered 22AWG wire.
Tinned Copper “Buss” Ground Wire.
Mounted on a 3D Printed Wiring Template.
Pots supplied with Nut, Flat Washer & Locking Star Washer.
You are welcome to Contact Us with your custom requirements.

Controls
Neck Volume Control.
Bridge Volume Control.
Master Tone.

Will this fit my guitar?
Our pre-wired Gibson & Epiphone Thunderbird Bass Left Handed Vintage Wiring Harness is wired to fit genuine Gibson or Epiphone guitars. If installing into an imported model or a DIY guitar kit you will need to ensure the Potentiometer holes on the control plate will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Centre of Volume pot 1 to centre of volume pot 2 – 40mm.
Centre of Volume pot 2 to centre of tone pot – 40mm..
These measurements were taken from a Left Handed Gibson and Epiphone guitar. If your measurements are different from the above, please let us know and we will build your harness to your specifications.

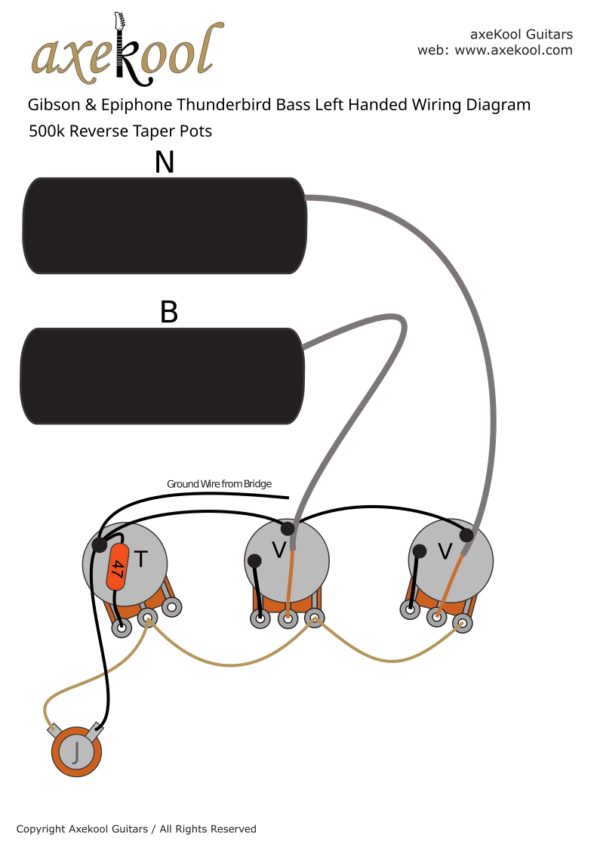

Installation, Wiring Diagram and Support
Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your Gibson & Epiphone Thunderbird Bass Left Handed Wiring Harness with a fitting guide and simple to follow wiring diagram.
We also offer full support should you need it.

Order Times
We make everything to order and the turnaround time for a Gibson & Epiphone Thunderbird Bass Left Handed Wiring Harness is 48 hours.

You may also need the following to complete this Wiring Harness:

• Jack Socket
• All Available Here



You may also require the following to complete your Left Handed Thunderbird Bass Wiring Harness:

All Available on our Electrical Components Page
