Gibson Sonex Vintage Wiring Harness

Description

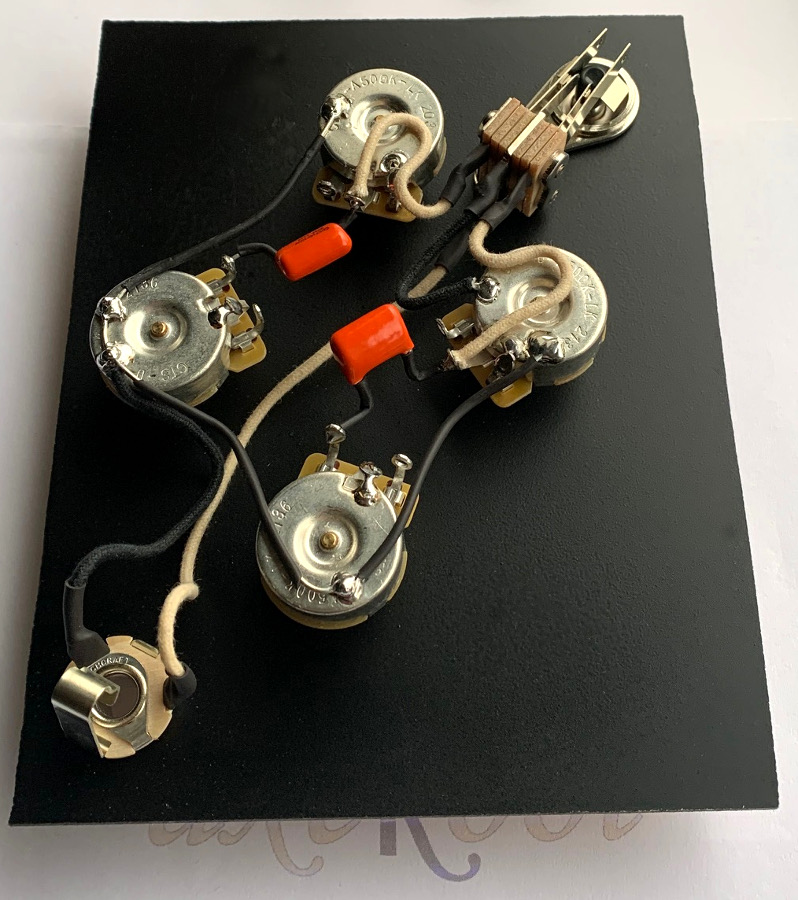

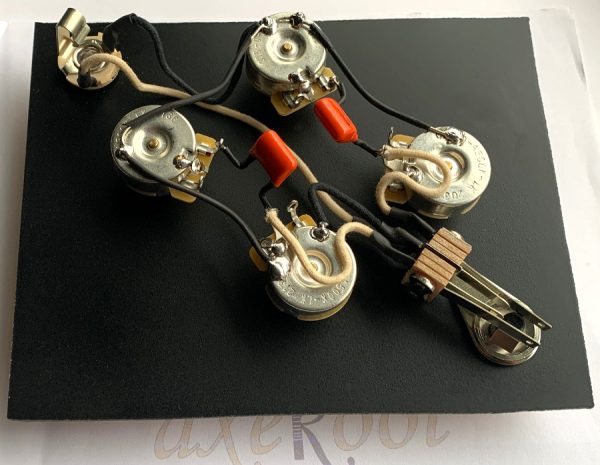

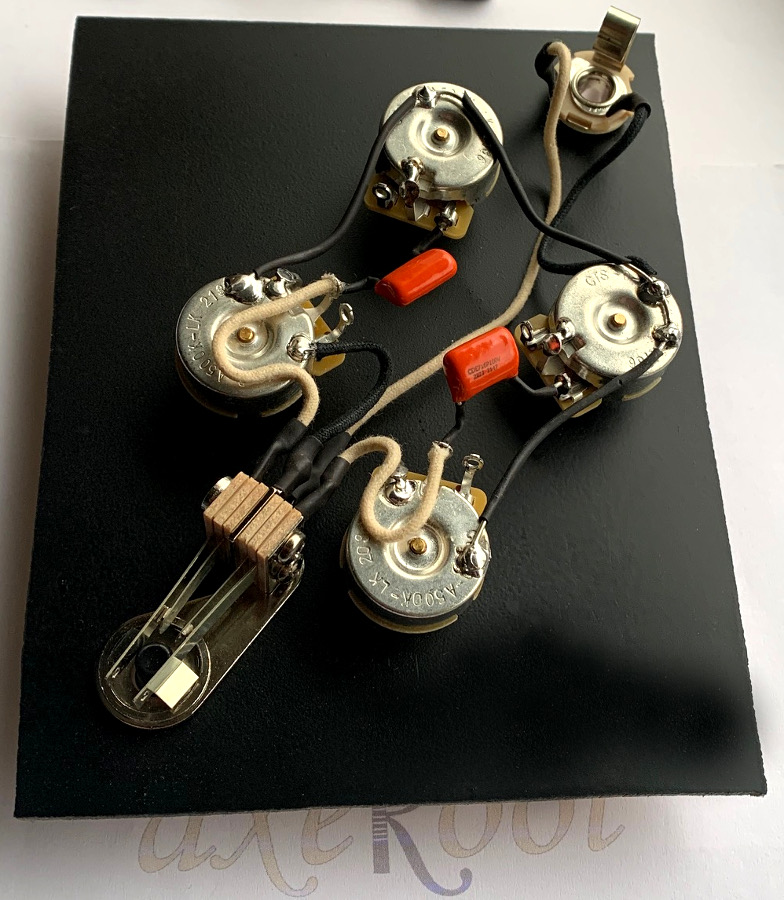

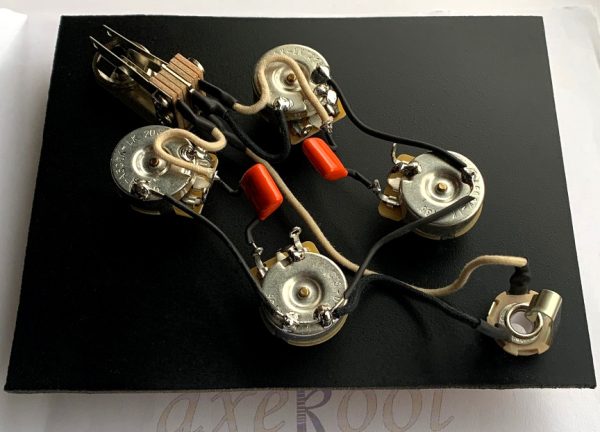

Gibson Sonex Vintage Style Wiring Harness

This pre-wired Gibson Sonex Vintage Style Wiring Harness is designed for replacing old electrics or upgrading electronics or for use on DIY Kits. We take a massive amount of care and attention when putting our Gibson Sonex Vintage harnesses together. Everything is fully tested before being posted to you.

This is a Professional Sonex wiring harness using the very best in components to enhance the quality of tone and sound output from your guitar.

Read about our Vintage Wiring Harnesses Here. We use our Sonex vintage wiring harnesses in our workshop for our clients guitar upgrades and also for our Axeify guitar upgrading services, read more Here.

Components
Premium 500k CTS Potentiometers x 4, short split shaft with vintage audio taper.
Switchcraft Right Angle Toggle 3 Way Switch – Choice of switch knob colour is included, Cream, Amber or Black.
Switchcraft USA Jack Socket.
Capacitors x 2, 0.022uF Sprague Orange Drop.
Gavitt USA made Shielded / Braided cloth wire.
Jack Socket and Pots supplied with Nut, Flat Washer & Locking Star Washer.
You are welcome to Contact Us with your custom requirements.

Controls
Volume 1 – Bridge.
Volume 2 – Neck.
Tone 1 – Bridge.
Tone 2 – Neck.

Switching
Position 1 – Bridge Pickup.
Position 2 – Bridge & Neck Pickup.
Position 3 – Neck Pickup.

Will this fit my guitar?
Our pre-wired Sonex Vintage Wiring harness is wired to fit all Gibson models.

Centre to centre measurements between components
Centre of Switch to neck volume pot – 38mm.
Centre of neck volume pot to centre of neck tone pot – 60mm.
Centre of bridge volume pot to centre of bridge tone pot – 68mm.
Centre of neck volume pot to bridge volume pot – 54mm.
Centre of neck tone pot to bridge tone pot – 50mm.
Centre of neck tone pot to centre of jack socket – 45mm.
Measurements can sometimes vary slightly on some Sonex Models. If your measurements are different from the above, please let us know and we will build your harness to your specifications.

Installation, Documents & Support

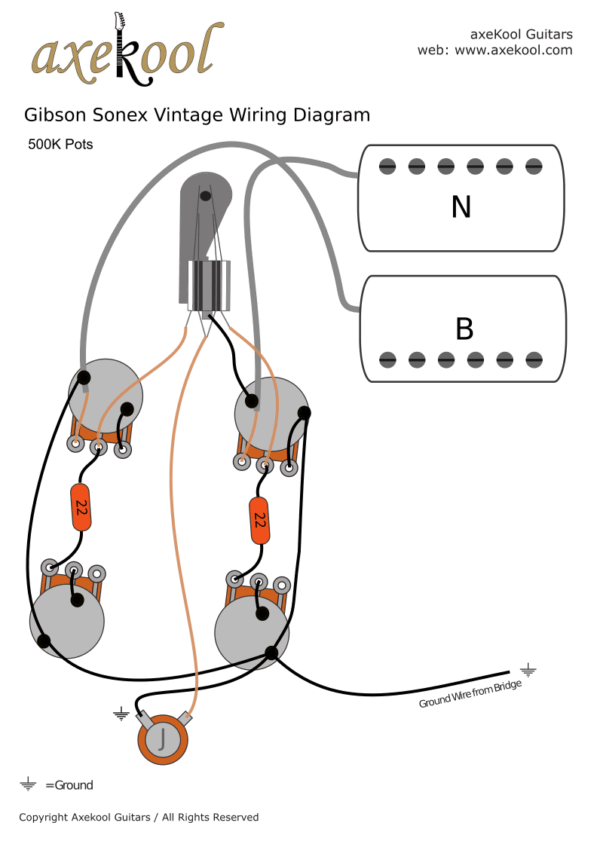

Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your Gibson Sonex Vintage Wiring Harness. We also offer full support should you need it.

Order Times
We make everything to order and the turnaround time for a Gibson Sonex Vintage Wiring Harness is 48 hours.

Gibson Sonex Vintage Wiring Harness, Gibson Sonex Vintage Wiring Loom
