Ibanez HSH Wiring Harness with Coil Split

Description

Ibanez HSH Wiring Harness with Coil Split

To fit models with 2 Humbuckers and a Single coil pickup in the Middle position.

The coil Splitting is done on the switch in 2nd and 4th position splitting the humbuckers with the middle pickup.

This pro pre-wired Ibanez HSH Wiring Harness with Coil Split is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Ibanez HSH Wiring Harnesses together. Everything is fully tested before being posted to you.

This is a Professional Ibanez wiring harness using the very best in components to enhance the quality of tone and sound output from your guitar.

Read about our Wiring Harnesses Here. We use our Ibanez HSH wiring harnesses in our workshop for our clients guitar upgrades and also for our Axeify guitar upgrading services, read more Here.

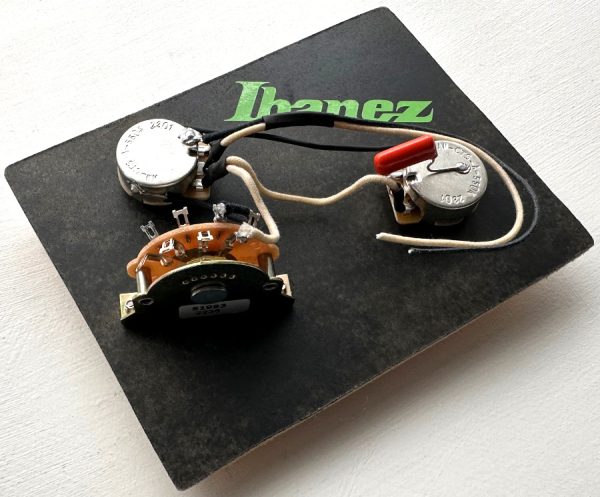

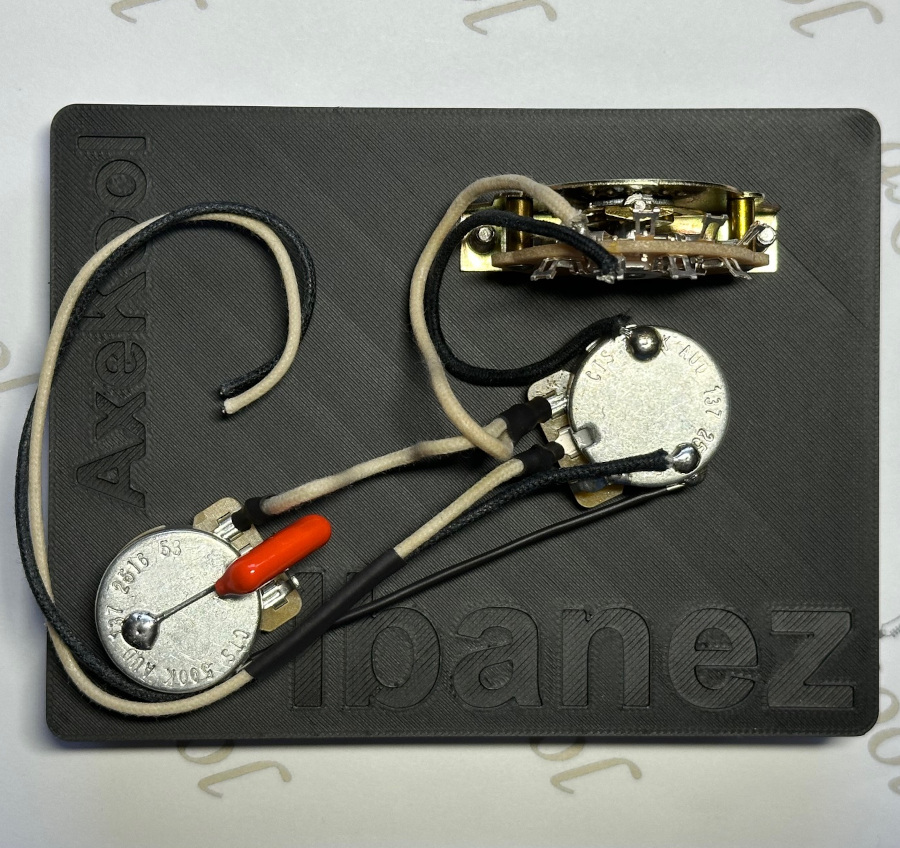

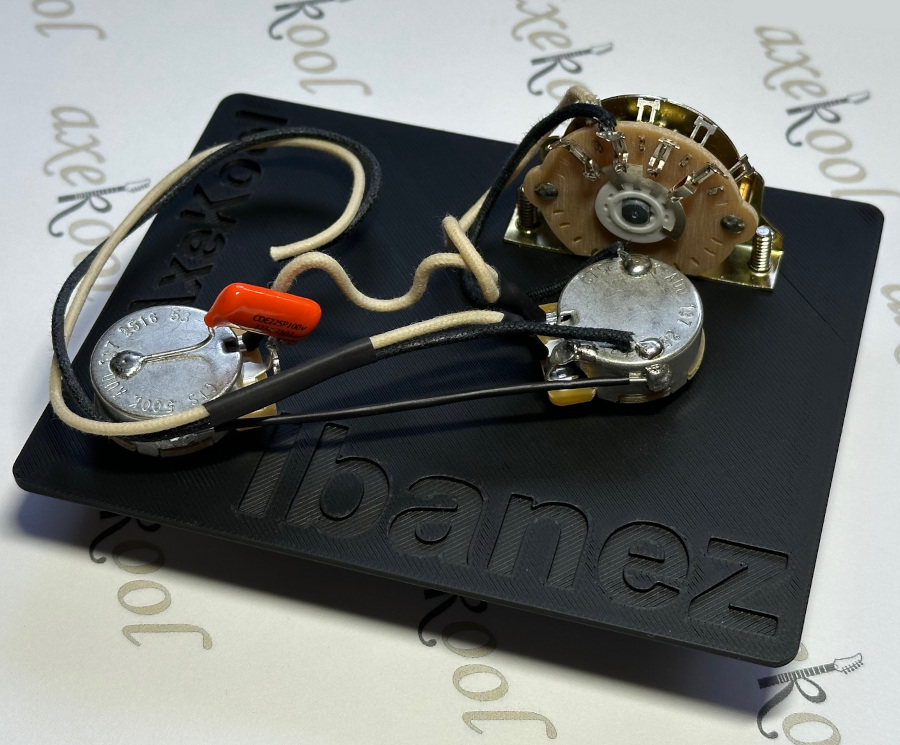

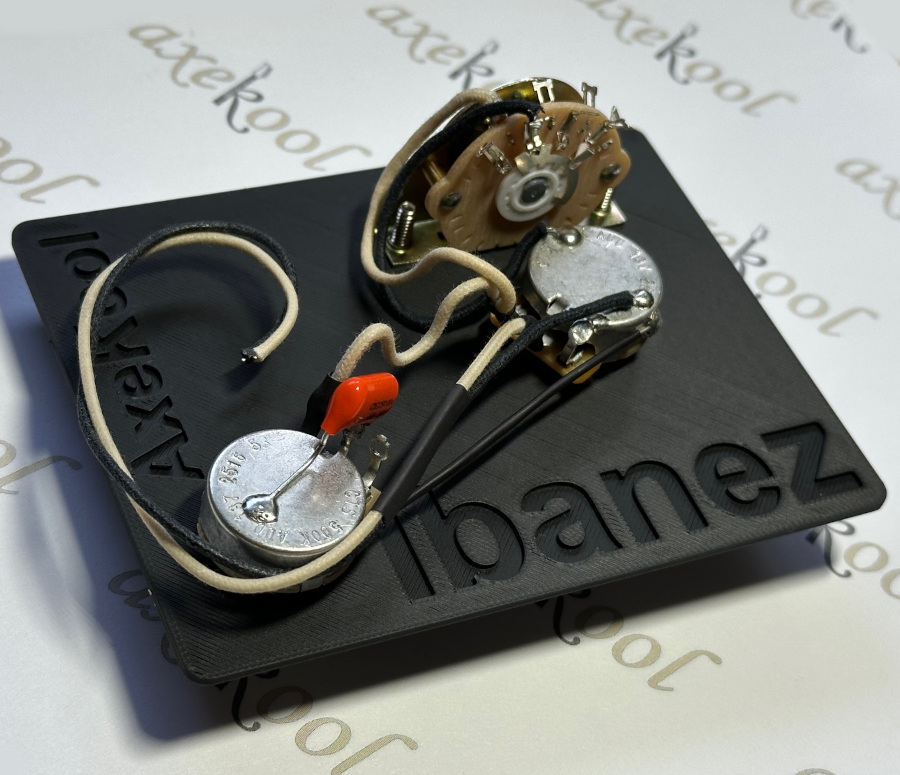

Components
Premium 500k CTS Potentiometers x 2, split shaft.
Oak Grigsby 5 way lever switch.
Capacitor / Sprague Orange Drop, Size 0.022uF.
Gavitt USA made cloth covered 22AWG wire.
Tinned-copper “buss” ground wire.
Pots supplied with Nut, Flat Washer & Locking Star Washer.
You are welcome to Contact Us with your custom requirements.

Treble Bleed Option
A Treble Bleed takes the high treble tone frequencies out of the circuit at the volume pot and puts them back in the circuit as the signal leaves the volume pot. The result is a smoothed out treble and a more uniform tone from 1 to 10. Reducing the treble drop out as the volume pot rolls off. If you like the idea of retaining treble as you roll your volume pot down, then a treble bleed is for you.

Controls
Master Volume Control.
Master Tone Control

Switching
Position 1 – Bridge pickup
Position 2 – Bridge pickup single coil with middle pickup
Position 3 – Middle pickup
Position 4 – Neck pickup single coil with middle pickup
Position 5 – Neck pickup

Will this fit my guitar?
Our pre-wired Ibanez HSH Wiring Harness with Coil Split is wired to fit genuine Ibanez models. If installing into an imported model or a DIY guitar kit you will need to ensure the Potentiometer holes on the Pickguard or body will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Centre of volume pot to centre of tone pot 90mm.
Measurements can sometimes vary slightly on some Ibanez Models, so we allow plenty of movement in wire lengths between components to allow for a comfortable fit. If your measurements are different from the above, please let us know and we will build your harness to your specifications.

Installation, Documents & Support
Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your Ibanez HSH Wiring Harness with Coil Split. We offer full after support should you need it.

Order Times
We make everything to order and the turnaround time for a Ibanez HSH Wiring Harness with Coil Split is 48 hours.
