PRS Bernie Marsden Vintage Wiring Harness

Description

PRS Bernie Marsden Vintage Wiring Harness

This pre-wired PRS Bernie Marsden Vintage Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our PRS Bernie Marsden Vintage Wiring Harnesses together. Everything is fully tested before being posted to you.

This is a Professional PRS Bernie Marsden wiring harness using the very best in components to enhance the quality of tone and sound output from your guitar.

Read about our Vintage Wiring Harnesses Here. We use our PRS Bernie Marsden Vintage Wiring Harnesses in our workshop for our clients guitar upgrades and also for our Axeify guitar upgrading services, read more Here.

Components
Premium 500k CTS Potentiometers x 3, split shaft with Vintage Audio Taper.
Sprague Orange Drop Capacitor Size 0.022uF
Gavitt USA made cloth covered 22AWG wire.
Tinned-copper “buss” ground wire.
Pots supplied with Nut, Flat Washer & Locking Star Washer.
You are welcome to Contact Us with your custom requirements.

Controls
Neck Volume Control.
Bridge Volume Control.
Master Tone.

Will this fit my guitar?
Our pre-wired PRS Bernie Marsden Vintage Wiring Harness is wired to fit genuine PRS guitars. If installing into an imported model or a DIY guitar kit you will need to ensure the Potentiometer holes on the control plate will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Centre of Volume pot 1 to centre of volume pot 2 – 50mm.
Centre of Volume pot 2 to centre of tone pot – 55mm..
These measurements were taken from a PRS guitar. If your measurements are different from the above, please let us know and we will build your harness to your specifications.

Installation, Documents & Support

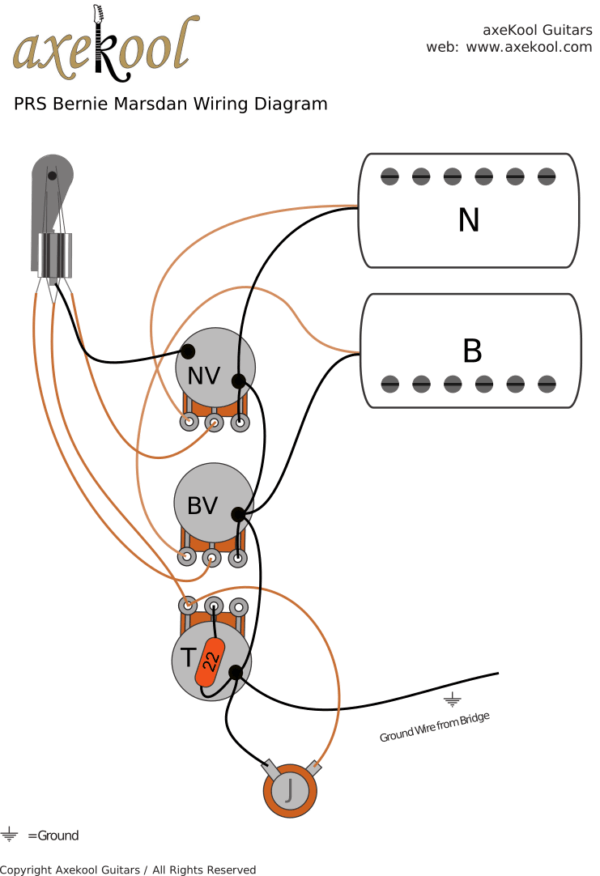

Please see our Support Page for wiring diagrams and fitting instructions.
The PRS Bernie Marsden Vintage Wiring Harness is one of the more simple harnesses to fit with just a few wires to  solder. We have made it as simple as possible to install your PRS Bernie Marsden Vintage Wiring Harness. We offer full after support should you need it.

Order Times
We make everything to order and the turnaround time for a PRS Bernie Marsden Vintage Wiring Harness is 48 hours.

You may also need the following to complete this Wiring Harness:

• Pre-Wired 3 Way Toggle Switch
• Jack Socket
• All Available Here

You may also require the following to complete your PRS Wiring Harness:

All Available on our Electrical Components Page

PRS Bernie Marsden Vintage Wiring Harness, Bernie Marsden Wiring Loom
