PRS DGT Wiring Harness

Description

PRS DGT Vintage Wiring Harness

This pre-wired PRS DGT Vintage Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our PRS DGT Vintage Wiring Harness together. Everything is fully tested before being posted to you.

This is a Professional PRS Wiring Harness using the very best in components to enhance the quality of tone and sound output from your guitar.

Components
USA 500k CTS Potentiometers x 3, Split Shaft.
Switchcraft USA 3 Way Toggle Switch.
Switchcraft USA Jack Socket.
Sprague Orange Drop Capacitor x 1, Size 0.022uF.
Gavitt USA Cloth Covered Wire.
Gavitt USA Braided Wire.
Tinned Copper “Buss” Ground Wire.

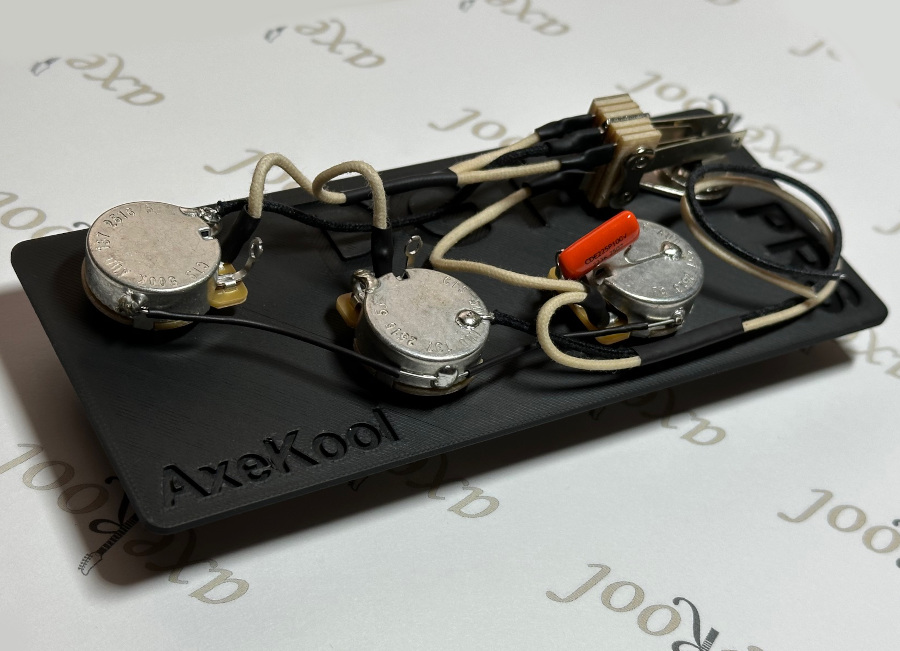

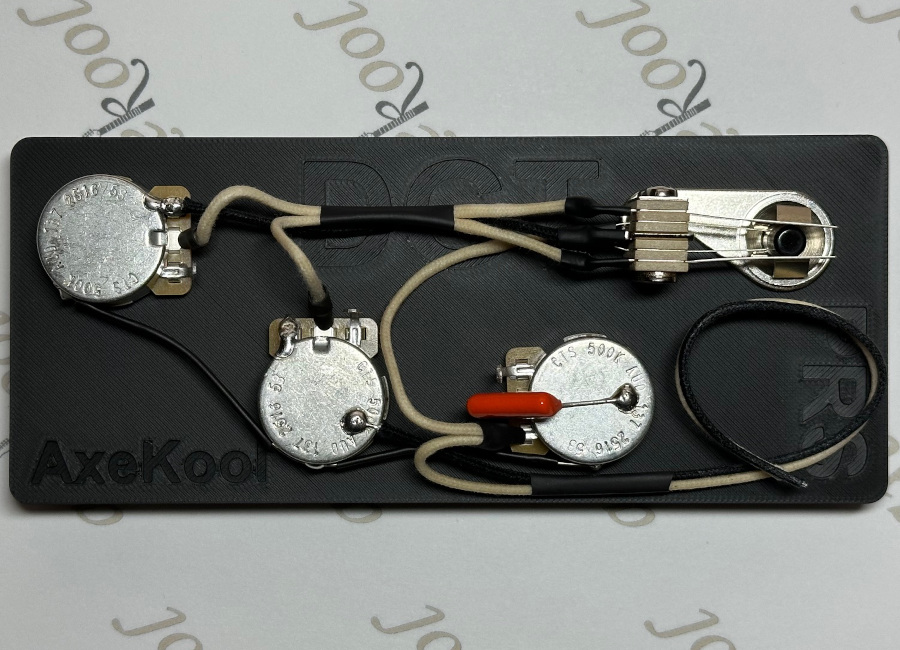

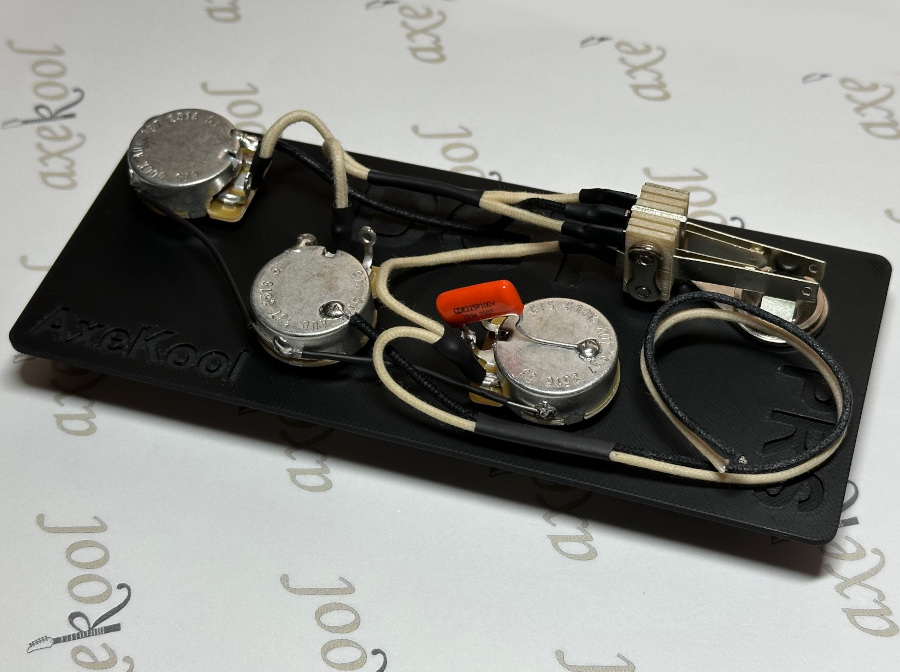

Mounted on a 3D Printed Wiring Template.
Jack Socket and Pots supplied with Nut, Flat Washer & Locking Star Washer.
You are welcome to Contact Us with your custom requirements.

Controls
Bridge Volume.
Neck Volume.
Master Tone.

Switching
Position 1 – Bridge Pickup.
Position 2 – Bridge & Neck Pickup.
Position 3 – Neck Pickup.

Will this fit my guitar?
Our pre-wired PRS DGT Vintage Wiring Harness is wired to fit genuine PRS models. If installing into an imported model / DIY guitar kit you will need to ensure the Potentiometer holes will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Centre of Bridge Volume Pot to centre of Neck Volume Pot – 50mm.
Centre of Neck Volume Pot to centre of Master tone pot – 50mm.
Centre of Master tone pot to 3 Way Toggle Switch – 50mm.
Measurements can sometimes vary slightly on some PRS DGT models, so we allow plenty of movement in wire lengths between components to allow for a comfortable fit.
If your measurements are different from the above, please let us know and we will build your harness to your specifications.

Installation, Wiring Diagram and Support
Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your PRS DGT Vintage Wiring Harness with a fitting guide and simple to follow wiring diagram.
We also offer full support should you need it.

Order Times
We make everything to order and the turnaround time for a PRS DGT Vintage Wiring Harness is 2-3 days.

PRS DGT Vintage Wiring Harness, PRS DGT Wiring Loom
