Yamaha Pacifica 112 Wiring Harness
£77.50 – £86.50
We build your Yamaha Pacifica 112 (HSS) Wiring Harness to order using professional fully tested electrical components.

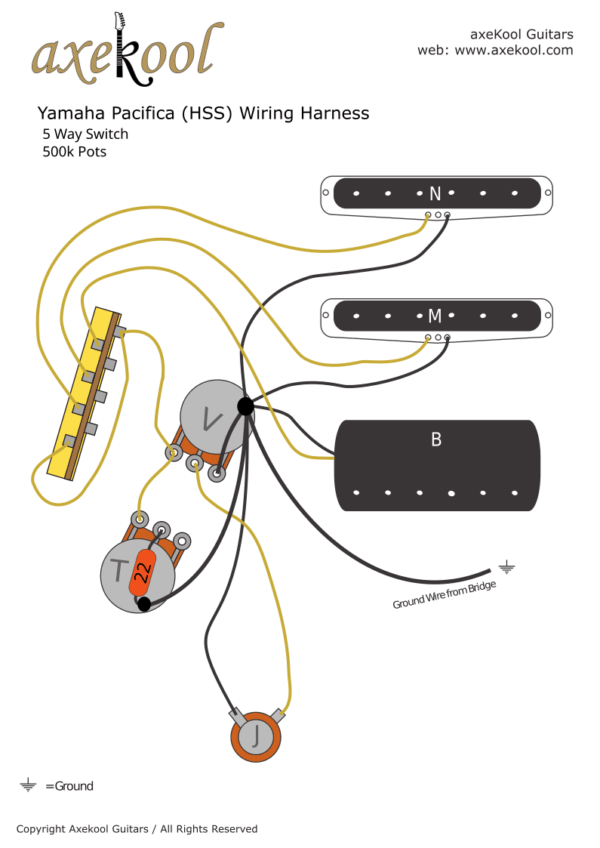

Includes wiring diagram & installation guide.
Description
Yamaha Pacifica 112 (HSS) Wiring Harness
To fit HSS pickup configuration

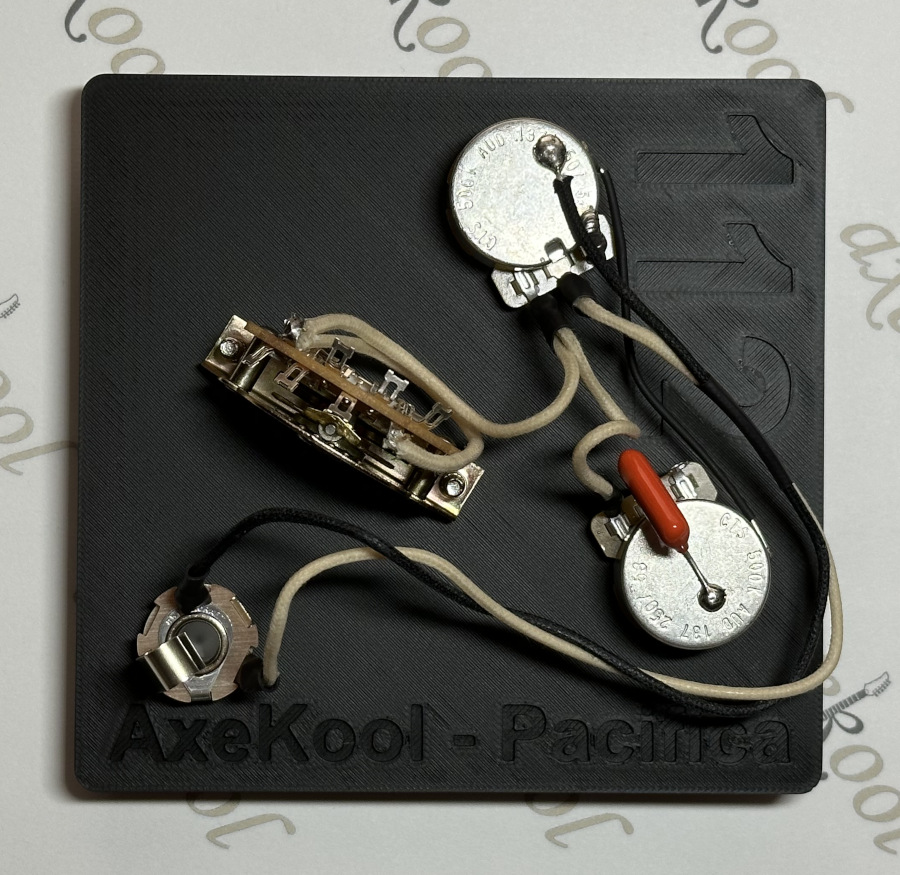

This pre-wired Yamaha Pacifica 112 Wiring Harness with 5 Way Switch is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Yamaha Pacifica 112 harnesses together. Everything is fully tested before being posted to you.
This is a Professional Yamaha wiring harness using the very best in components to enhance the quality of tone and sound output from your guitar.
Read about our Wiring Harnesses Here. We use our Yamaha Pacifica 112 wiring harnesses in our workshop for our clients guitar upgrades and also for our Axeify guitar upgrading services, read more Here.
Components
Premium 500k CTS Potentiometers x 2, split shaft.
CRL USA 5 way lever switch.
Switchcraft Jack Socket.
Sprague Orange Drop Capacitor, Size 0.022uF.
Gavitt USA made cloth covered 22AWG wire.
Tinned-copper “buss” ground wire.
Jack Socket and Pots supplied with Nut, Flat Washer & Locking Star Washer.
You are welcome to Contact Us with your custom requirements.
Treble Bleed Option
A Treble Bleed takes the high treble tone frequencies out of the circuit at the volume pot and puts them back in the circuit as the signal leaves the volume pot. The result is a smoothed out treble and a more uniform tone from 1 to 10. Reducing the treble drop out as the volume pot rolls off. If you like the idea of retaining treble as you roll your volume pot down, then a treble bleed is for you.
Controls
Volume Control.
Tone – Control – Coil Split Option Available
Switching
Position 1 – Bridge pickup with volume adjustment only.
Position 2 – Bridge pickup with middle pickup in parallel with volume and tone adjustment.
Position 3 – Middle pickup with volume and tone adjustment.
Position 4 – Middle pickup with neck pickup in parallel with volume and tone adjustment.
Position 5 – Neck pickup with volume and tone adjustment.
Will this fit my guitar?
Our pre-wired Yamaha Pacifica 112 Wiring harness is wired to fit genuine Yamaha Pacifica 112 control plates. If installing into an imported model or a DIY guitar kit you will need to ensure the Potentiometer holes on the Pickguard will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.
Centre to centre measurements between components
Centre of Volume pot to Switch – 50mm.
Centre of Volume pot to centre of Tone pot – 65mm.
These measurements were taken from a Yamaha Pacifica 112.
Installation, Documents & Support
Please see our Support Page for wiring diagrams and fitting instructions.
The Yamaha Pacifica 112 wiring harness is one of the more simple harnesses to fit with a few wires to solder, including ground wires, 3 hot wires from the pickups and 1 ground and 1 hot going to the jack and the ground wire from the bridge. All ground wires go to the back of the Volume Potentiometer and the pickup hot wires go to the 3 in a line unused lugs on the 5 way switch. There is sometimes an additional ground wire from the body which you will need to solder to the back of the Volume Potentiometer. We have made it as simple as possible to install your Yamaha Pacifica 112 Wiring Harness. We offer full after support should you need it.
Order Times
We make everything to order and the turnaround time for a Yamaha Pacifica 112 Wiring Harness with 5 Way Switch is 48 hours.
