Yamaha Pacifica PAC611vfm Wiring Harness

Description

Yamaha Pacifica PAC611vfm Wiring Harness

To fit Humbucker in Bridge and P90 in the Neck Pickup Configuration.

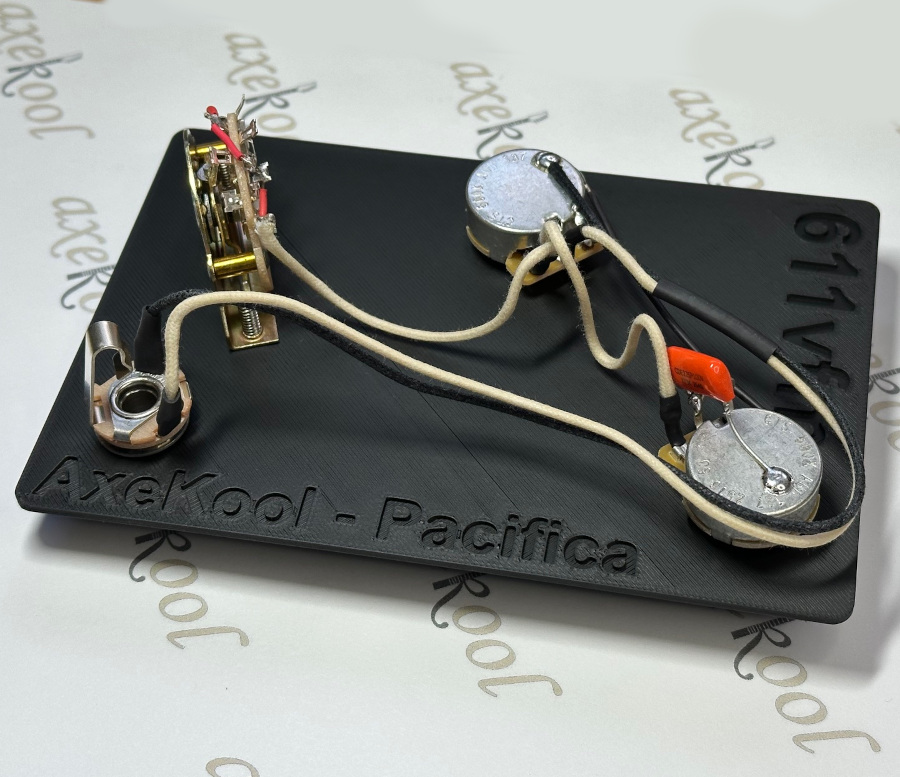

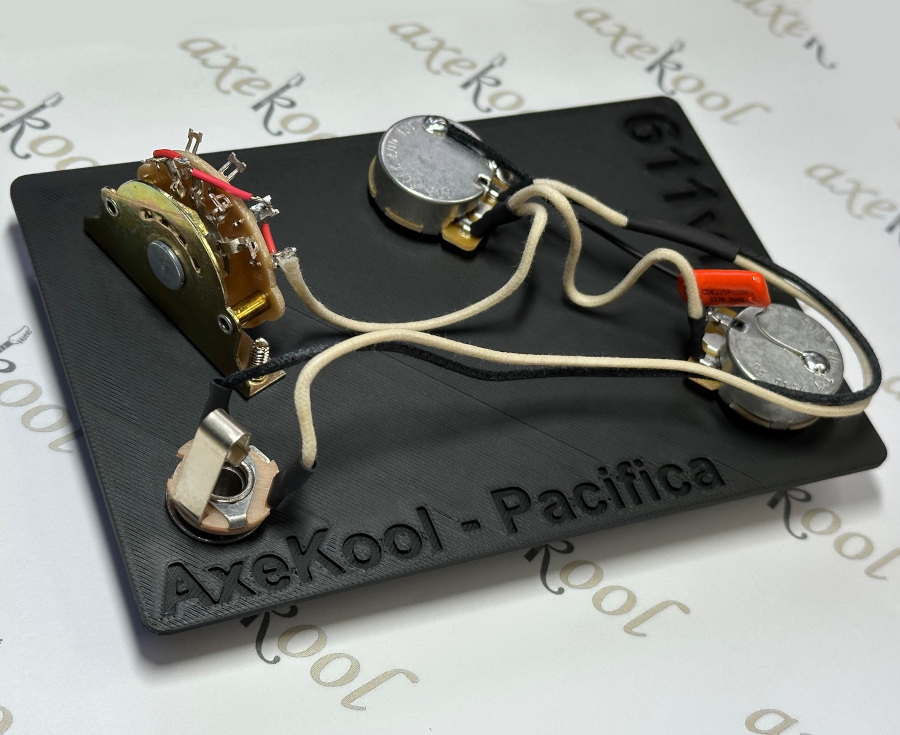

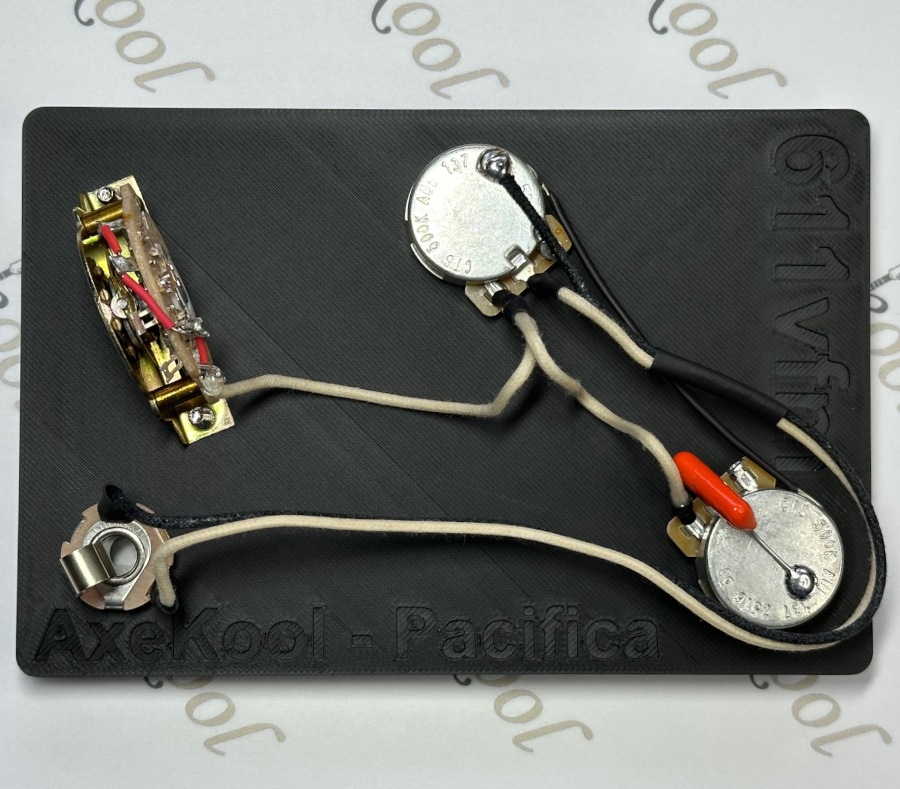

This pre-wired Yamaha Pacifica PAC611vfm Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Yamaha Pacifica PAC611vfm harnesses together. Everything is fully tested before being posted to you.

This is a Professional Yamaha Wiring Harness using the very best in components to enhance the quality of tone and sound output from your guitar.

Components
Premium 500k CTS Potentiometers x 2, split shaft.
Oak Grigsby 3 way lever switch.
Switchcraft Jack Socket.
Sprague Orange Drop Capacitor, Size 0.022uF.
Gavitt USA made cloth covered 22AWG wire.
Tinned-copper “buss” ground wire.
Jack Socket and Pots supplied with Nut, Flat Washer & Locking Star Washer.
You are welcome to Contact Us with your custom requirements.

Treble Bleed Option
A Treble Bleed takes the high treble tone frequencies out of the circuit at the volume pot and puts them back in the circuit as the signal leaves the volume pot. The result is a smoothed out treble and a more uniform tone from 1 to 10. Reducing the treble drop out as the volume pot rolls off. If you like the idea of retaining treble as you roll your volume pot down, then a treble bleed is for you.

Controls
Volume Control.
Tone – Control.

Switching
Position 1 – Bridge pickup with volume and tone adjustment.
Position 2 – Bridge pickup with middle pickup in parallel with volume and tone adjustment.
Position 3 – Middle pickup with volume and tone adjustment.
Position 4 – Middle pickup with neck pickup in parallel with volume and tone adjustment.
Position 5 – Neck pickup with volume and tone adjustment.

Will this fit my guitar?
Our pre-wired Yamaha Pacifica PAC611vfm Wiring harness is wired to fit a genuine Yamaha Pacifica PAC611vfm. If installing into an imported model or a DIY guitar kit you will need to ensure the Potentiometer holes on the Pickguard will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Centre of Volume pot to Switch – 50mm.
Centre of Volume pot to centre of Tone pot – 65mm.
These measurements were taken from a Yamaha Pacifica PAC611vfm.

Installation, Wiring Diagram and Support

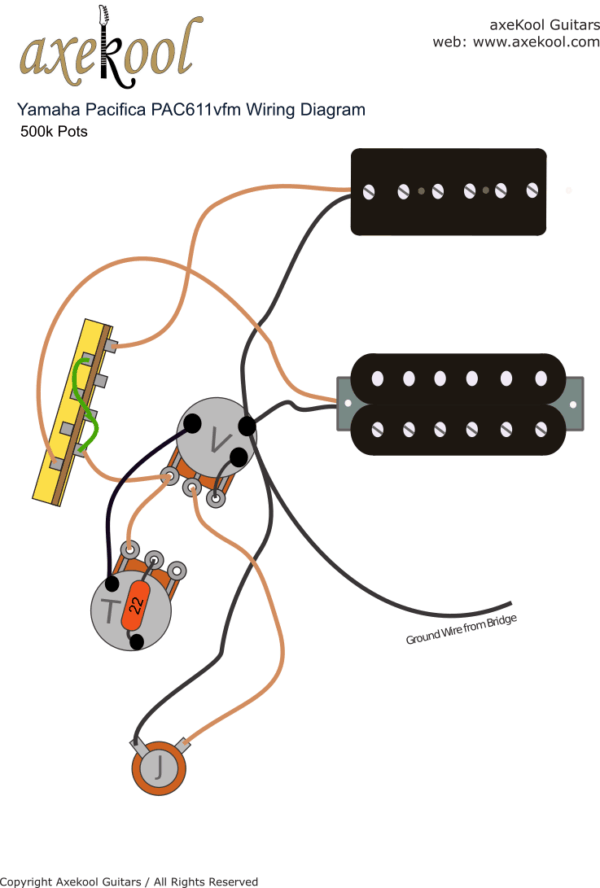

Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your Yamaha Pacifica PAC611vfm Wiring Harness with a fitting guide and simple to follow wiring diagram.
We also offer full support should you need it.

Order Times
We make everything to order and the turnaround time for a Yamaha Pacifica PAC611vfm Wiring Harness is 48 hours.
